ABS Sequence Control
›
Operation
›
Conditions For Abs Sequence Control
Conditions For Abs Sequence Control
NOTE:
The control operation starts at point A.

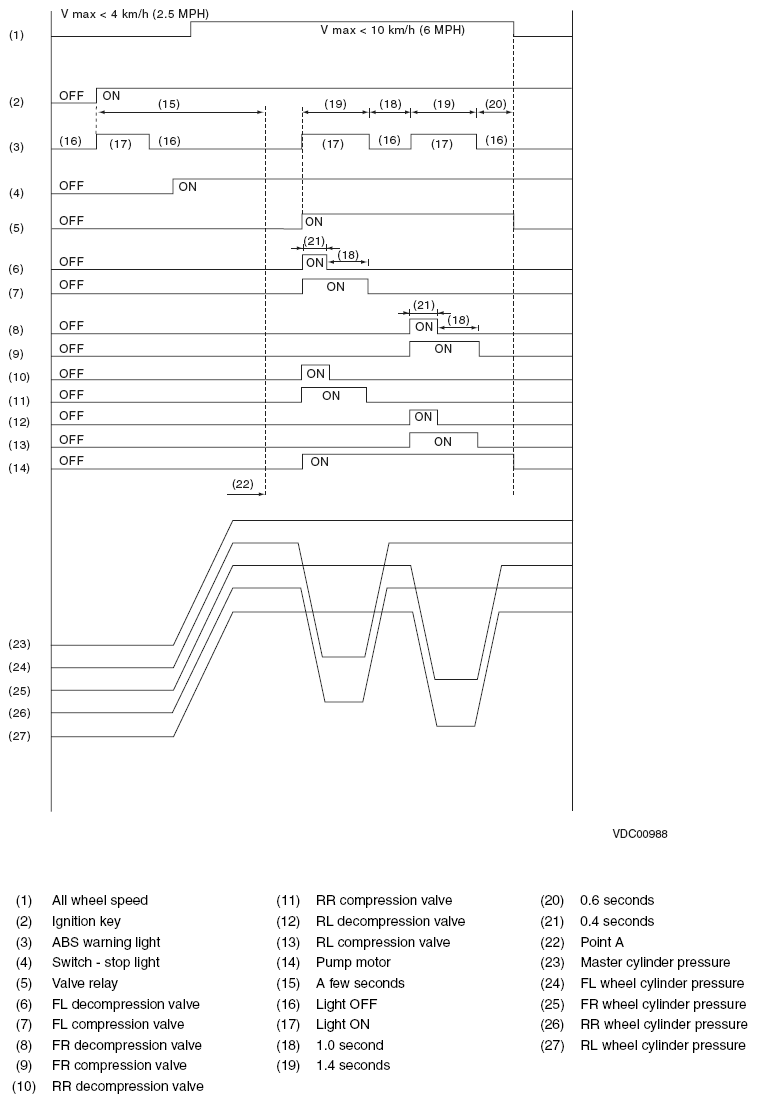

Fig 1: ABS Sequence Control Operation On/Off Pattern
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
