VDC OFF Switch: Inspection

Check the resistance between the VDC OFF switch terminals.

PREPARATION TOOL:

Circuit tester

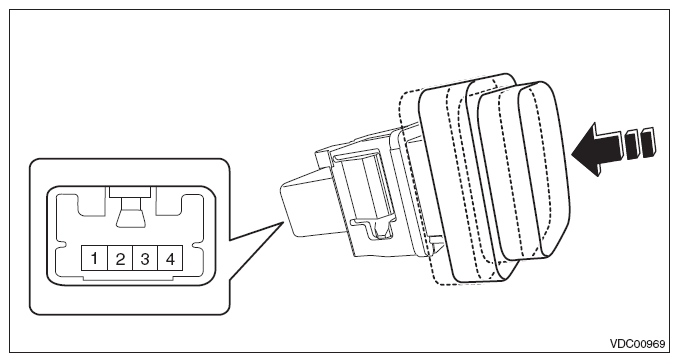

Fig 1: Disconnecting VDC Off Switch Connector

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard
2 - 3	Switch OFF	1 MΩ or more
	Switch ON	Less than 1 Ω

Replace the VDC OFF switch if the inspection result is not within the standard value.
