Starting System & Charging System (H4DO): Generator: Removal

1. Remove the V-belt covers.

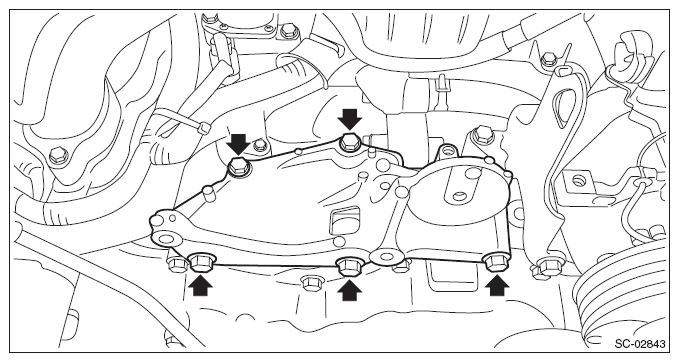

   Fig 1: Locating V-Belt Cover Bolt

   Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the ground cable from battery. Ref. to BATTERY .
3. Remove the V-belts. Ref. to V-belt , REMOVAL, V-belt.

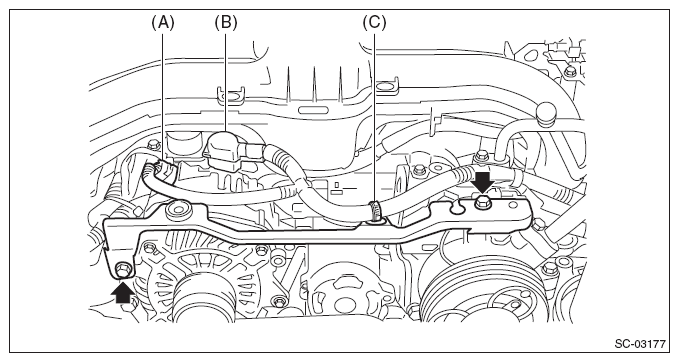

4. Disconnect the connector (A) and terminal (B) from the generator, and remove the clip (C).
5. Remove the V-belt cover bracket.
   Fig 2: Locating V-Belt Cover Bracket Bolts

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the generator from the generator bracket.

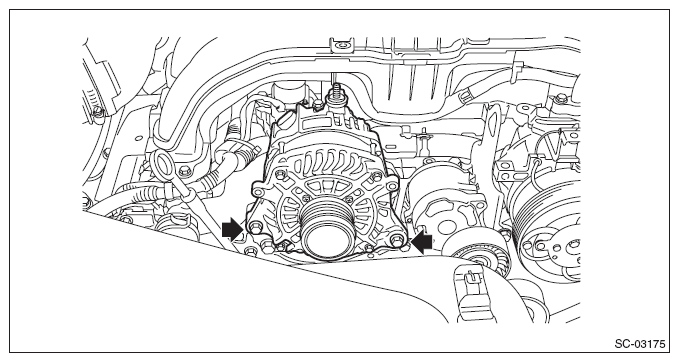

   Fig 3: Removing Generator From Generator Bracket

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the V-belt tensioner assembly. Ref. to V-belt , REMOVAL, V-belt.
8. Remove the generator bracket from the engine.

Fig 4: Removing Generator Bracket From Engine

Courtesy of SUBARU OF AMERICA, INC.
