Engine Control Module (ECM): Removal

1. Disconnect the ground cable from battery.

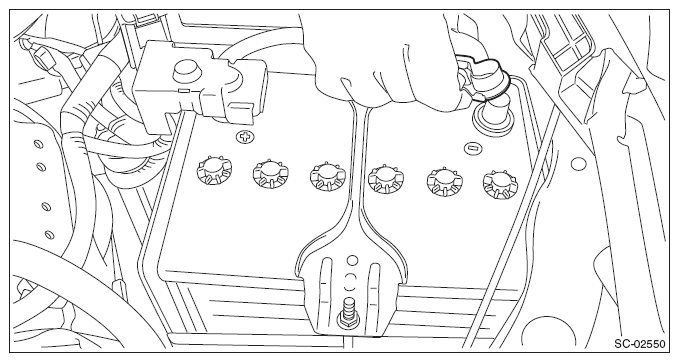

   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the glove box. Ref. to REMOVAL , Glove Box.
3. Disconnect the connector from ECM.

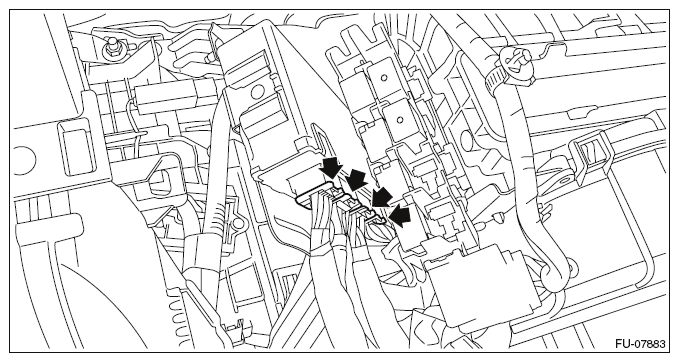

   Fig 2: Locating ECM Connectors

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the bolts and nuts, and remove the ECM.

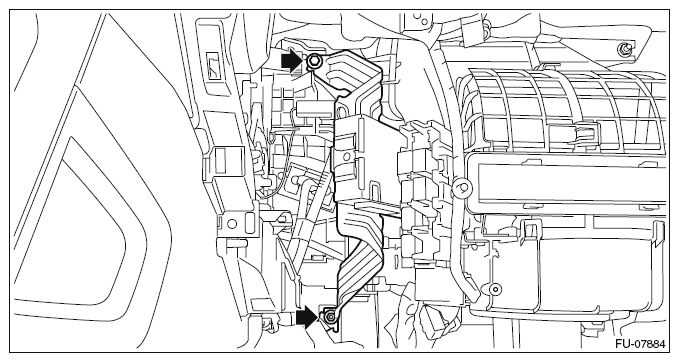

Fig 3: Locating ECM Bolts And Nuts

Courtesy of SUBARU OF AMERICA, INC.
