Fuel Injection System (H4DO)
›
General Description
›
Components With Torque Specifications
›
Fuel Pump
Fuel Pump

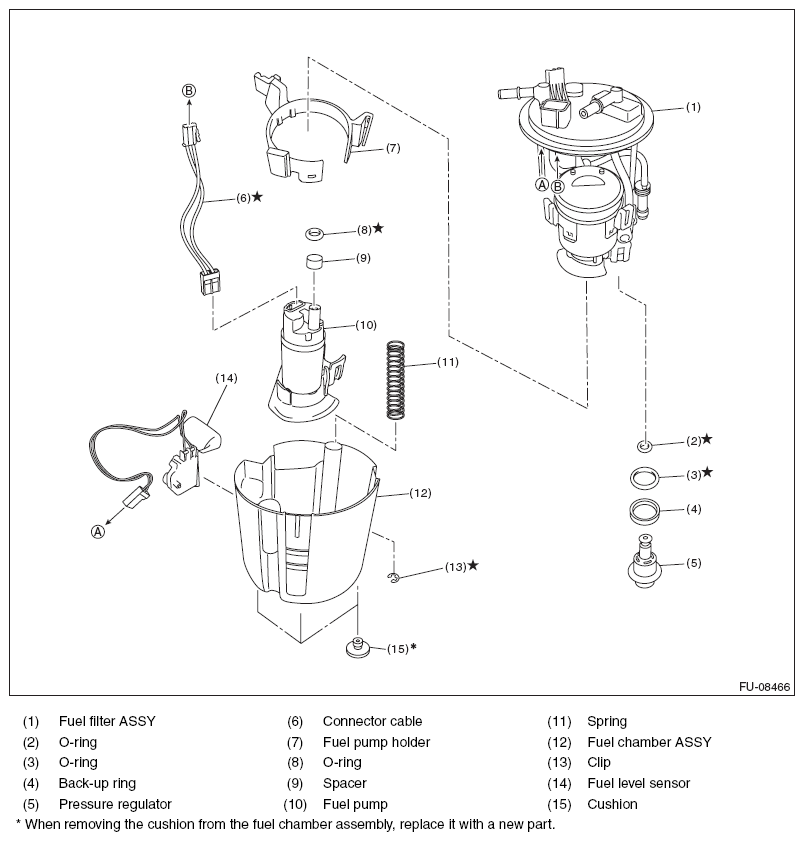

Fig 1: Exploded View Of Fuel Pump Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
