Main Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G08317298Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the glove box. Ref. to REMOVAL , Glove Box.
  3. Remove the main relay from relay block.

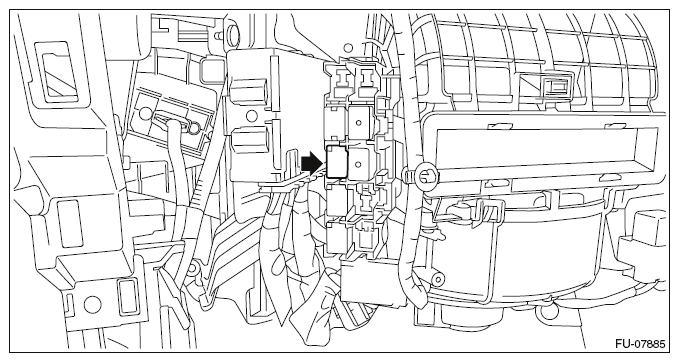

Fig 2: Locating Main Relay From Relay Block
G09475588Courtesy of SUBARU OF AMERICA, INC.
