Section 3 (CVT Transaxle)
›
General Description
›
Components With Torque Specifications
›
Forward Clutch Assembly
Forward Clutch Assembly
WARNING:
This page is about a different variant/trim than selected.

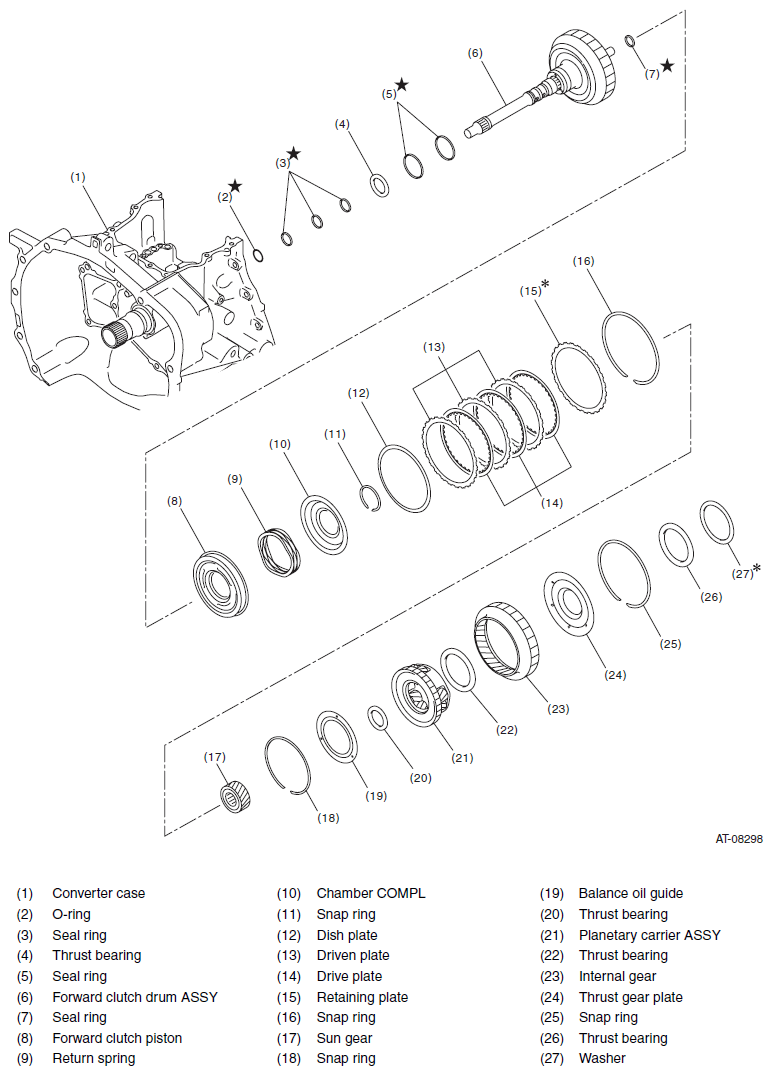

Fig 1: Exploded View Of Forward Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
