Power Steering Control Module: Removal

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Remove the power steering control module.
  1. Disconnect the connector of the power steering control module.
  2. Remove the nuts, and remove the power steering control module.

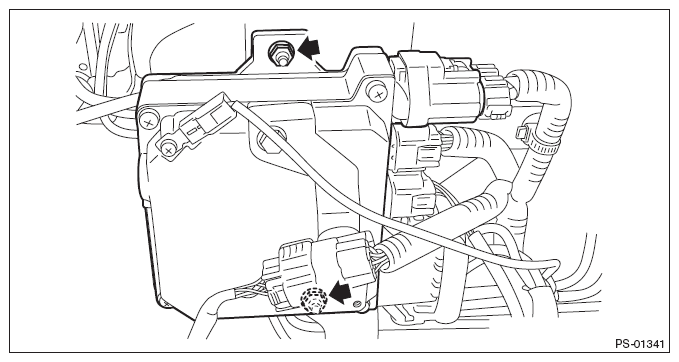

Fig 1: Locating Power Steering Control Module Nuts
G08316091Courtesy of SUBARU OF AMERICA, INC.
