Front Stabilizer: Removal

1. Lift up the vehicle, and then remove the left and right front wheels.
2. Remove the under cover - front. Ref. to REMOVAL , Front Under Cover.
3. Remove the front crossmember support. Ref. to REMOVAL , Front Crossmember Support Plate.
4. Remove the front stabilizer.
   1. Remove the left and right stabilizer links.
   2. Remove the clamp - stabilizer bushing on the left and right sides.

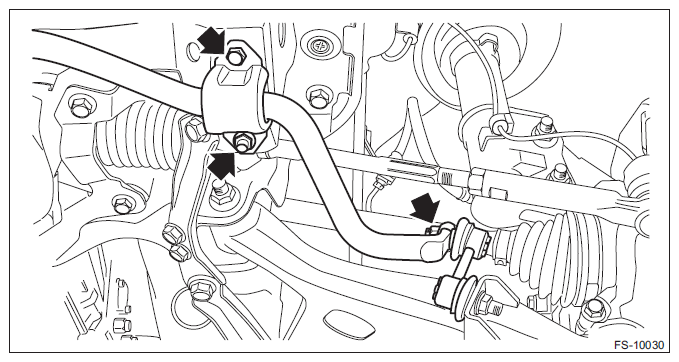

Fig 1: Locating Left And Right Stabilizer Links Bolts

Courtesy of SUBARU OF AMERICA, INC.
