Operating Cylinder: Removal

CAUTION: Brake fluid spilled on the vehicle body will harm the paint surface; therefore, wash it off with water and wipe clean quickly if spilled.

1. Disconnect the ground cable from battery.
2. Remove the clip (A) from the air intake boot.
3. Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
4. Loosen the clamp (C) which connects the air intake boot and throttle body.

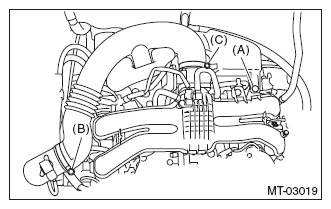

   Fig 1: Air Intake Boot Clip And Clamps

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

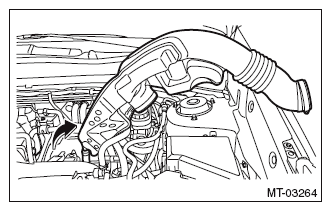

   Fig 2: Removing Air Intake Boot From Throttle Body

   Courtesy of SUBARU OF AMERICA, INC.
6. Disconnect the clutch hose.
   CAUTION: Cover the hose joint to prevent the brake fluid from flowing out.
   Fig 3: Clutch Hose And Operating Cylinder

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the operating cylinder.

Fig 4: Operating Cylinder Bolts

Courtesy of SUBARU OF AMERICA, INC.
