Keyless Entry Control Module: Removal

1. Disconnect the ground cable from battery. Ref. to BATTERY .
2. Remove the trim panel - rear apron LH. Ref. to REMOVAL , Rear Quarter Trim.
3. Remove the keyless entry control module.
   1. Disconnect the connector.
   2. Remove the bolt and then remove the keyless entry control module.

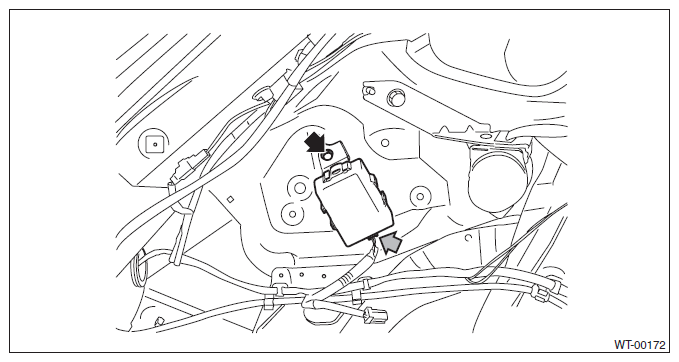

Fig 1: Locating Keyless Entry Control Module Connector And Bolt

Courtesy of SUBARU OF AMERICA, INC.
