Forward Clutch Assembly: Removal

1. Remove the transmission assembly from the vehicle. Ref. to REMOVAL , Automatic Transmission Assembly.
2. Remove the air breather hose. Ref. to REMOVAL , Air Breather Hose.
3. Remove the control valve body. Ref. to REMOVAL , Control Valve Body.
4. Remove the transmission harness. Ref. to REMOVAL , Transmission Harness.
5. Remove the turbine speed sensor. Ref. to REMOVAL , Turbine Speed Sensor.
6. Remove the secondary speed sensor. Ref. to REMOVAL , Secondary Speed Sensor.
7. Remove the primary speed sensor. Ref. to REMOVAL , Primary Speed Sensor.
8. Remove the inhibitor switch. Ref. to REMOVAL , Inhibitor Switch.
9. Remove the extension case. Ref. to REMOVAL , Extension Case.
10. Remove the transfer clutch assembly. Ref. to REMOVAL , Transfer Clutch.
11. Remove the transfer driven gear assembly. Ref. to REMOVAL , Transfer Driven Gear.
12. Remove the parking pawl. Ref. to REMOVAL , Parking Pawl.
13. Remove the reduction driven gear assembly. Ref. to REMOVAL , Reduction Driven Gear.
14. Remove the oil pan and oil strainer. Ref. to REMOVAL , Oil Pan and Strainer.
15. Remove the transmission control device. Ref. to REMOVAL , Transmission Control Device.
16. Remove the transmission case. Ref. to REMOVAL , Transmission Case.
17. Remove the reduction drive gear. Ref. to REMOVAL , Reduction Drive Gear.
18. Remove the primary pulley, secondary pulley and variator chain. Ref. to REMOVAL , Primary Pulley and Secondary Pulley.
19. Remove the reverse brake assembly. Ref. to REMOVAL , Reverse Brake Assembly.
20. Remove the internal gear.
    Fig 1: Removing Internal Gear

    Courtesy of SUBARU OF AMERICA, INC.
21. Remove the thrust bearing.
    Fig 2: Removing Thrust Bearing

    Courtesy of SUBARU OF AMERICA, INC.
22. Remove the planetary carrier.
    Fig 3: Removing Planetary Carrier

    Courtesy of SUBARU OF AMERICA, INC.
23. Remove the thrust bearing and sun gear.
    Fig 4: Removing Thrust Bearing And Sun Gear

    Courtesy of SUBARU OF AMERICA, INC.
24. Remove the forward clutch assembly.
    Fig 5: Removing Forward Clutch Assembly

    Courtesy of SUBARU OF AMERICA, INC.

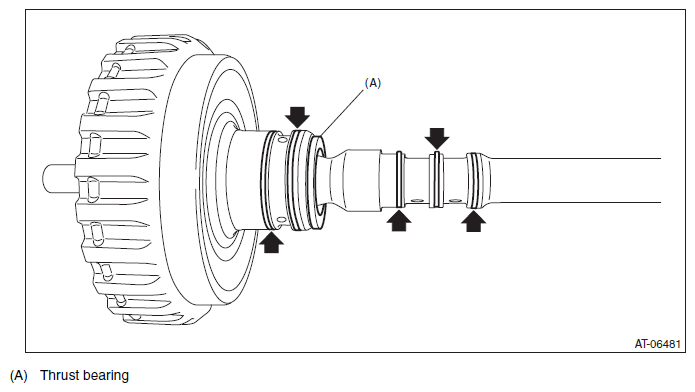

25. Remove the thrust bearing and seal ring.

Fig 6: Removing Thrust Bearing And Seal Ring

Courtesy of SUBARU OF AMERICA, INC.
