Oil Pump Chain: Installation

Clean the mating surface of oil pump chain cover and converter case.
Using the ST, install the oil seal.
NOTE:
- Use a new oil seal.
- Apply CVTF to the oil seal lip and press-fitting surface.
ST 499755602 PRESS SNAP RING

Fig 1: Installing Oil Seal Using ST
Courtesy of SUBARU OF AMERICA, INC.
Install the drive sprocket.

Fig 2: Installing Drive Sprocket
Courtesy of SUBARU OF AMERICA, INC.

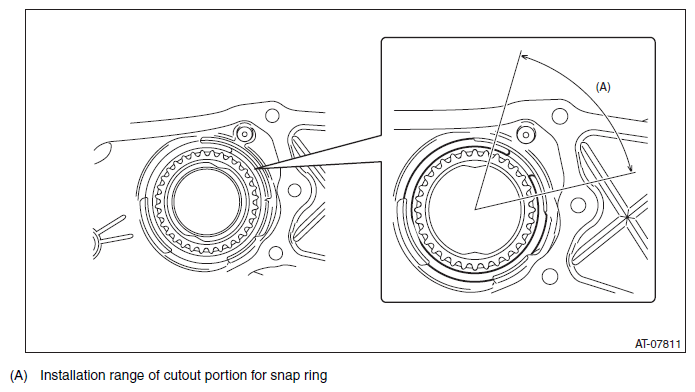

Install the snap ring so that its cutout portion is securely fitted into the snap ring groove of the oil pump chain cover.

Fig 3: Checking Snap Ring Cutout Portion Range
Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump chain on drive sprocket.
Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.

Fig 4: Installing Driven Sprocket To Oil Pump Chain Cover
Courtesy of SUBARU OF AMERICA, INC.

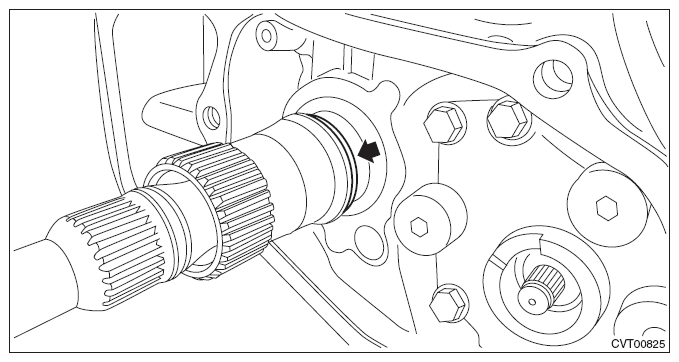

Install the seal ring.
NOTE:
- Use a new seal ring.
- Apply CVTF to the seal rings.
- When installing the seal ring, do not expand the seal ring too much.
Fig 5: Installing Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket seamlessly to the mating surface of oil pump chain cover.
CAUTION: Do not apply liquid gasket at the arrowed hole.

Liquid gasket:

THREE BOND 1215B or equivalent

Fig 6: Liquid Gasket Seamlessly Applying To Mating Surface Of Oil Pump Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pump chain cover.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

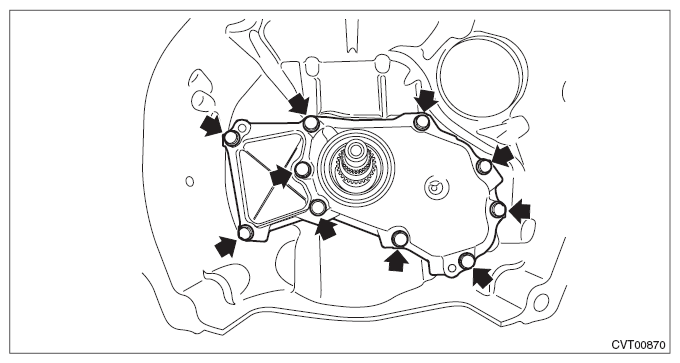

Fig 7: Locating Oil Pump Chain Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter assembly. Ref. to INSTALLATION , Torque Converter Assembly.
Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
