MT Gear Shift Lever: Removal

1. Disconnect the ground cable from battery. Ref. to BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the console box. Ref. to REMOVAL , Console Box.
3. Remove the gear shift knob and remove the cover - shift lever.

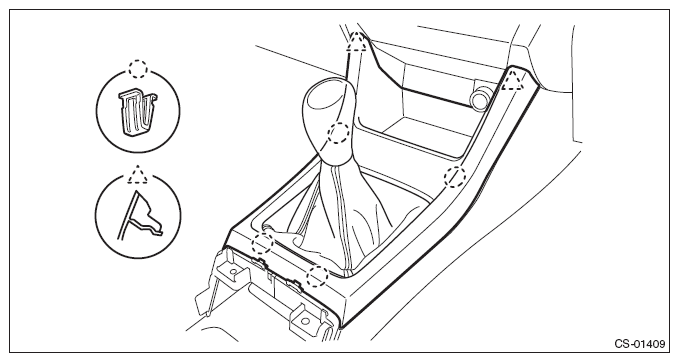

   Fig 1: Gear Shift Knob Clip Location

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the panel center LWR LH and RH. Ref. to REMOVAL , Console Box.
5. Remove the clamp.
   Fig 2: Panel Center LWR LH And RH

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the boot and insulator assembly.
   Fig 3: Boot And Insulator Assembly

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the harness clamp from the plate COMPL.
   Fig 4: Locating Plate Compl Harness Clamp

   Courtesy of SUBARU OF AMERICA, INC.
8. Remove the plate COMPL from the vehicle body.
   Fig 5: Locating Vehicle Body Plate Compl Bolts

   Courtesy of SUBARU OF AMERICA, INC.
9. Lift up the vehicle.
10. Remove the center exhaust pipe. Ref. to REMOVAL , Center Exhaust Pipe.
11. Remove the center exhaust cover.
    Fig 6: Center Exhaust Cover Location

    Courtesy of SUBARU OF AMERICA, INC.
12. Remove the stay from the shift bracket.

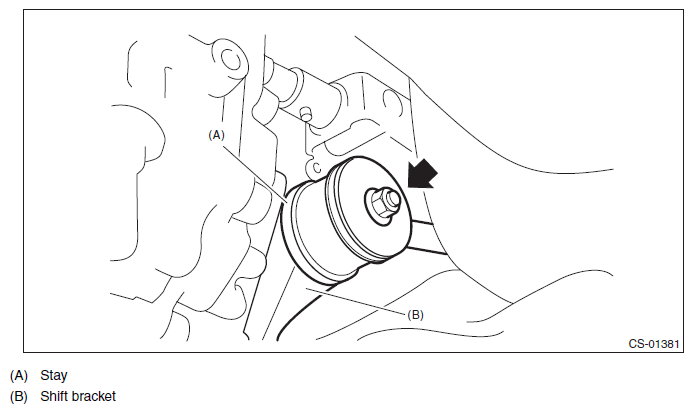

    Fig 7: Stay And Shift Bracket

    Courtesy of SUBARU OF AMERICA, INC.
13. Remove the rod from joint.

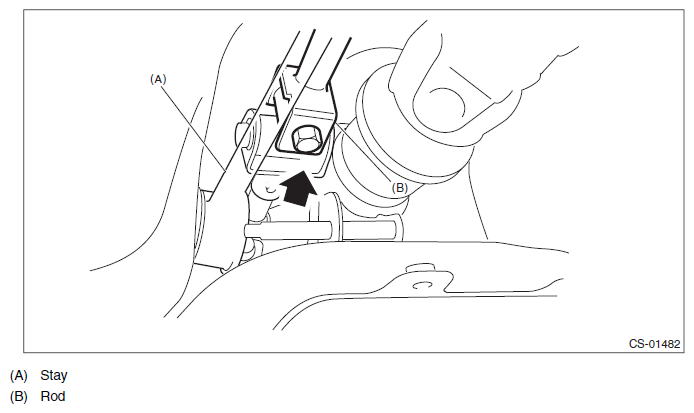

    Fig 8: Locating Rod Joint

    Courtesy of SUBARU OF AMERICA, INC.
14. Remove the cushion rubber from the vehicle body.

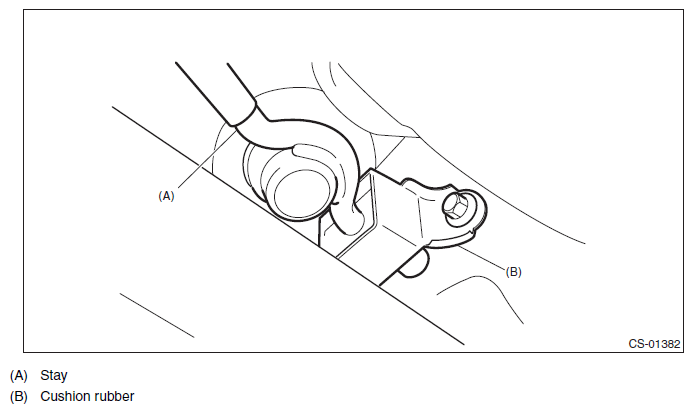

    Fig 9: Stay And Cushion Rubber

    Courtesy of SUBARU OF AMERICA, INC.
15. Extract the spring pin and remove the joint.

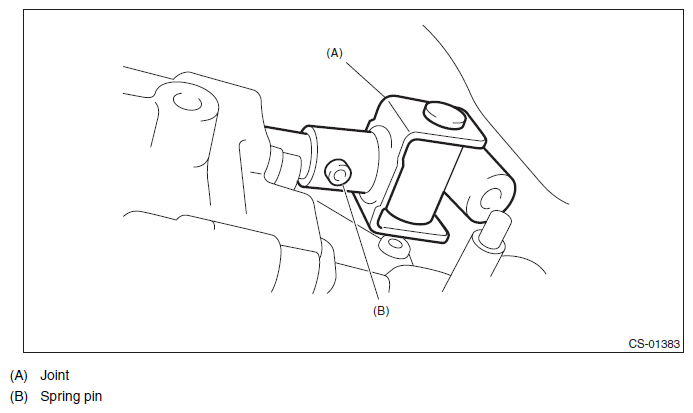

    Fig 10: Joint And Spring Pin

    Courtesy of SUBARU OF AMERICA, INC.
16. Lower the vehicle.
17. Remove the gear shift lever.

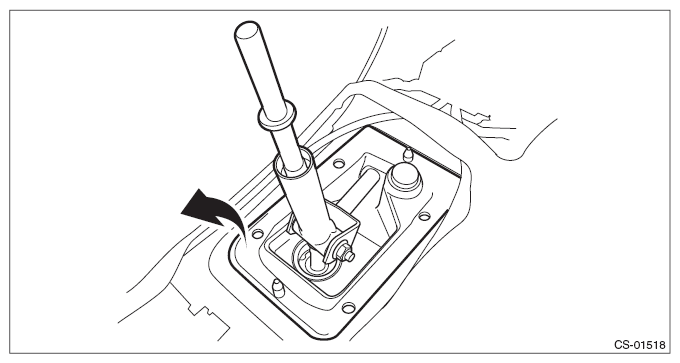

Fig 11: Removing Gear Shift Lever

Courtesy of SUBARU OF AMERICA, INC.
