DTC P0606 Control Module Processor: Notes

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

• Improper idling
• Poor driving performance
  CAUTION:

  • After servicing or replacing faulty parts, perform Clear Memory Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>Clear Memory Mode . and Inspection Mode Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>Inspection Mode .
  • Use the check board when measuring the ECM terminal voltage and resistance.

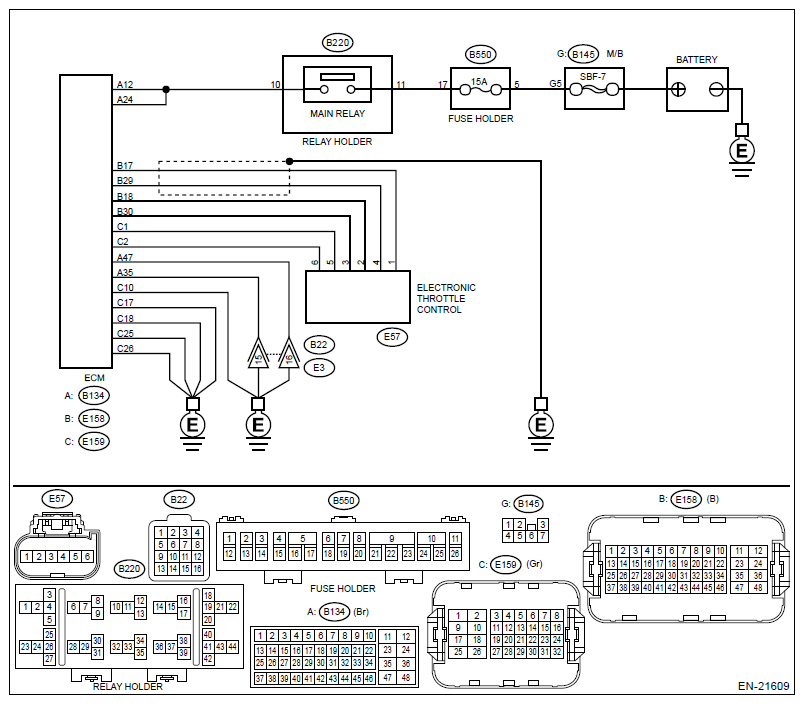

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>Engine Electrical System>WIRING DIAGRAM .

1. CHECK INPUT VOLTAGE OF ECM.
   1. Turn the ignition switch to ON.
   2. Measure the voltage between ECM and engine ground.

      Connector & terminal

      (B134) No. 12 (+) - Engine ground (-):

      (B134) No. 24 (+) - Engine ground (-):

   Is the voltage 10 - 13 V?

   • Yes: Go to  2.
   • No: Repair the open or short to ground in the power supply circuit.
2. CHECK INPUT VOLTAGE OF ECM.
   1. Start the engine.
   2. Measure the voltage between ECM and engine ground.

      Connector & terminal

      (B134) No. 12 (+) - Engine ground (-):

      (B134) No. 24 (+) - Engine ground (-):

   Is the voltage 13 - 15 V?

   • Yes: Go to  3.
   • No: Repair the open or short to ground in the power supply circuit.
3. CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL CONNECTOR.
   1. Turn the ignition switch to OFF.
   2. Disconnect the connectors from electronic throttle control.
   3. Disconnect the connector from ECM.
   4. Measure the resistance of harness between ECM and electronic throttle control connector.

      Connector & terminal

      (E158) No. 18 - (E57) No. 2:

      (E158) No. 30 - (E57) No. 3:

   Is the resistance less than 1 Ω?

   • Yes: Go to  4.
   • No: Repair the open circuit of harness between ECM and electronic throttle control connector.
4. CHECK ECM GROUND HARNESS.
   1. Connect all connectors.
   2. Turn the ignition to ON.
   3. Measure the voltage between ECM and engine ground.

      Connector & terminal

      (B134) No. 35 - Engine ground:

      (B134) No. 47 - Engine ground:

      (E159) No. 10 - Engine ground:

      (E159) No. 17 - Engine ground:

      (E159) No. 18 - Engine ground:

      (E159) No. 25 - Engine ground:

      (E159) No. 26 - Engine ground:

   Is the voltage less than 1 V?

   • Yes: Check the connector for poor contact and check the harness. Replace the ECM if no fault is found. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Engine Control Module (ECM) .
   • No: repair the harness and connector.
     NOTE: In this case, repair the following item:

     • Open circuit in ground circuit
     • Loose engine ground terminal
     • Poor contact of coupling connector
