Remote Engine Start Systems Troubleshooting Guide (134423)
Publication date: 2017-01-10Reference number: 134423
Supersedes refnos: (TSMSSG)
REMOTE ENGINE START SYSTEMS TROUBLESHOOTING GUIDE
TECHNICAL SERVICE BULLETIN
Reference Number(s): 134423 (TSMSSG), Date of Issue:
January 10, 2017
| SUBARU: | 2014-2017 Forester |
SERVICE INFORMATION
IMPORTANT:
- Test and diagnose any vehicle diagnostic trouble codes (DTC) prior to proceeding with any remote engine start (RES) part replacements.
- Make sure the vehicle has a fully-charged battery before proceeding, around 12.63 volts.
- Ensure that all harness connectors are securely seated per respective installation instructions.
- Make sure the vehicle has a sufficient amount of fuel.
- This guide references back to the respective system's installation instructions, please have a copy of the installation instructions on hand during troubleshooting.
"This Troubleshooting Guide is intended for use by professional technicians ONLY. It is written to inform those technicians of conditions that may occur in some vehicles, or to provide information that could assist in the proper servicing of the vehicle. Properly trained technicians have the equipment, tools, safety instructions, and know-how to do the job correctly and safely. If a condition is described in this guide, DO NOT assume that your vehicle will have that condition."
RES SYSTEM PART INFORMATION
Remote Engine Start System Part Matrix
| Forester | Forester | |
|---|---|---|
| 2014MY | 2015-2017MY | |
| Complete RES Kit--------- | H001SSG401 | H001SSG501 |
| Service Part Number | ||
| H001SSG010 RES ECU Replacement Kit |
X | X |
| H001SSG460 RES Bi-Directional Fob (qty 1) |
X | X |
| H001SSG020 Ignition Harness Replacement Kit - 14MY |
X | |
| H001SFJ620 Ignition Harness Replacement Kit - 15MY |
X | |
| H001SSG030 Pre-Arranged Jumper Harness Kit |
X | X |
| H001SSG041 Antenna Replacement Kit |
X | X |
| H001SSG050 Hood Switch/Bracket Replacement Kit |
X | X |
Please Note: The service part numbers referenced above are current as of the revision of this document. Please check with your parts department for verification.
SERVICE PART DETAIL
SYSTEM LAYOUT

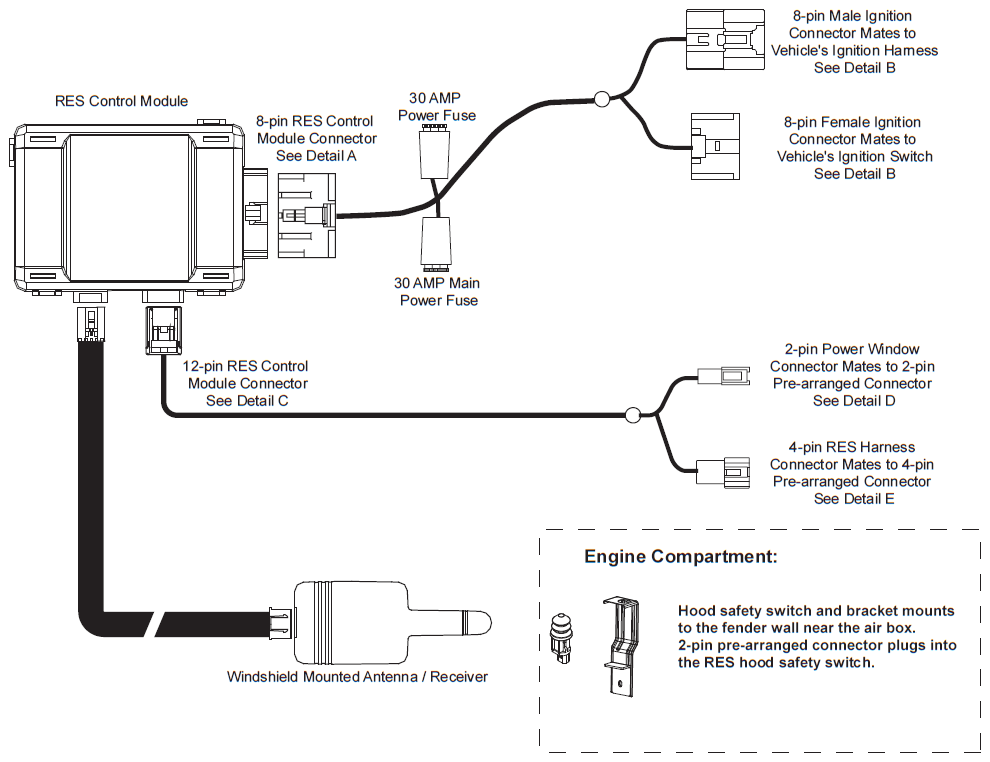

WIRE HARNESS CONNECTOR LAYOUTS
"Detail A" 8-pin RES Control Module Connector
NOTE:
Connector Layout Applies to all: 2014-2017MY Forester Vehicles
| Pin | Wire Color | Function | In/Out | Pol. | Description |
|---|---|---|---|---|---|
| 1 | Blue | Ignition 2 | Output | + | Ignition switch Ig 2, RES ignition 2 output |
| 2 | White/Red | Battery 2 | Input | + | Battery (12 volt) input to RES Control Module |
| 3 | Yellow | Accessory Output | Output | + | Output to power ignition switch accessory circuit during RES operation |
| 4 | White/Black | Starter 1 | Output | + | Starter Crank Output |
| 5 | Green | Ignition 1 | I/O | + | Ignition switch Ig 1 Input, RES ignition 1 output |
| 6 | Open | Open | |||
| 7 | Red/Black | Starter 2 | Output | + | Starter crank 2 output |
| 8 | White | Battery 1 | Input | + | Battery (12 volt) input to RES Control Module |
"Detail B" 8-pin RES Ignition Switch Connectors
NOTE:
Connector Layout Applies to all: 2014-2017MY Forester Vehicles
| Pin | Wire Color | Function | In/Out | Pol. | Description |
|---|---|---|---|---|---|
| 1 | Green | Ignition 1 | I/O | + | Ignition switch Ig 1, RES ignition 1 output |
| 2 | Yellow | Accessory | Output | + | Ignition switch accessory, RES accessory output |
| 3 | White/Black | Starter 1 | Output | + | Starter crank output |
| 4 | White | Battery | I/O | + | Ignition switch battery + feed |
| 5 | White/Red | Battery 2 | I/O | + | Ignition switch battery + feed |
| 6 | Blue | Ignition 2 | Output | + | Ignition switch Ig 2, RES ignition 2 output |
| 7 | Red/Black | Starter 2 | Output | + | Starter 2 Output |
| 8 | Open Cavity | Open | -- | NA | NA |
NOTE:
Connector Layout Applies to all: 2014-2017MY Forester Vehicles
| Pin | Wire Color | Function | In/Out | Pol. | Description |
|---|---|---|---|---|---|
| 1 | Green | Ignition 1 | I/O | + | Ignition switch Ig 1, RES ignition 1 output |
| 2 | Yellow | Accessory | Output | + | Ignition switch accessory, RES accessory output |
| 3 | White/Black | Starter 1 | Output | + | Starter crank output |
| 4 | White | Battery | I/O | + | Ignition switch battery + feed |
| 5 | White/Red | Battery 2 | I/O | + | Ignition switch battery + feed |
| 6 | Blue | Ignition 2 | Output | + | Ignition switch Ig 2, RES ignition 2 output |
| 7 | Red/Black | Starter 2 | Output | + | Starter 2 Output |
| 8 | Open Cavity | Open | -- | NA | NA |
"Detail C" 12-pin RES Control Module Connector
NOTE:
Connector Layout Applies to all: 2014-2017MY Forester Vehicles
| Pin | Wire Color | Function | In/Out | Pol. | Description |
|---|---|---|---|---|---|
| 1 | Black | Chassis Ground | Input | - | Chassis ground input to RES system |
| 2 | Open | NA | NA | NA | NA |
| 3 | Open | NA | NA | NA | NA |
| 4 | Blue | CAN Low | NA | Data | High Speed CAN data transmit/receive |
| 5 | Open | NA | NA | NA | NA |
| 6 | Tan | Power Window Inter. | NA | NA | Interrupts ground trigger to power window ignition relay during RES |
| 7 | Open | NA | NA | NA | NA |
| 8 | Open | NA | NA | NA | NA |
| 9 | Yellow/Black | Hoood Safety Switch Input | Input | - | Registers ground with hood is open, rests neutral when hood is closed |
| 10 | Red | CAN High | NA | Data | High Speed CAN data transmit/receive |
| 11 | Tan/Red | Power Window Inter. | NA | NA | Interrupts ground trigger to power window ignition relay during RES |
| 12 | Open | NA | NA | NA | NA |
"Detail D" 2-pin RES Power Window Interrupt Connector
NOTE:
Connector Layout Applies to all: 2014-2017MY Forester Vehicles
| Pin | Wire Color | Function | In/Out | Pol. | Description |
|---|---|---|---|---|---|
| 1 | Tan | Power Window Inter. | NA | NA | Interrupts ground trigger to power window ignition relay during RES |
| 2 | Tan/Red | Power Window Inter. | NA | NA | Interrupts ground trigger to power window ignition relay during RES |
"Detail E" 4-pin RES Pre-Arranged Connector
NOTE:
Connector Layout Applies to all: 2014-2017MY Forester Vehicles
| Pin | Wire Color | Function | In/Out | Pol. | Description |
|---|---|---|---|---|---|
| 1 | Yellow/Black | Hood Safety Switch Input | Input | - | Registers ground with hood is open, rests neutral when hood is closed |
| 2 | Black | Chassis Ground | Input | - | Chassis ground input for RES system |
| 3 | Blue | CAN Low | NA | Data | High Speed CAN data transmit/receive |
| 4 | Red | CAN High | NA | Data | High Speed CAN data transmit/receive |

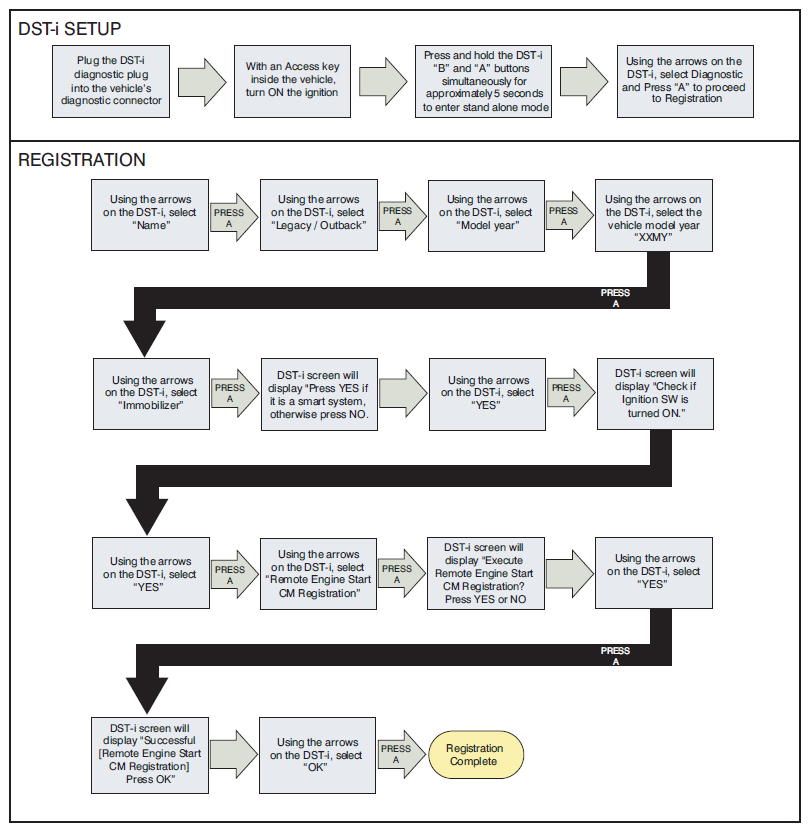

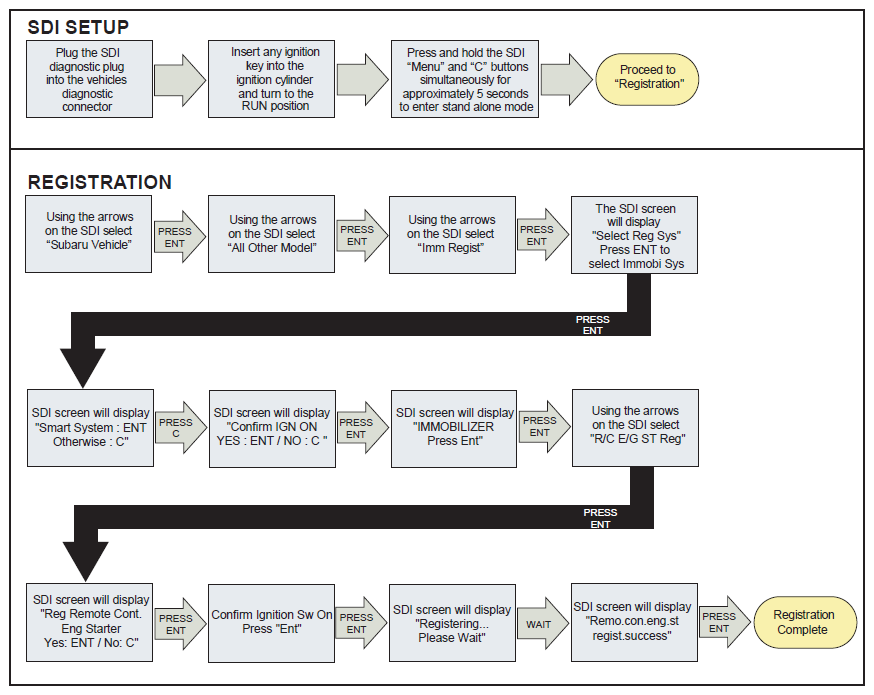

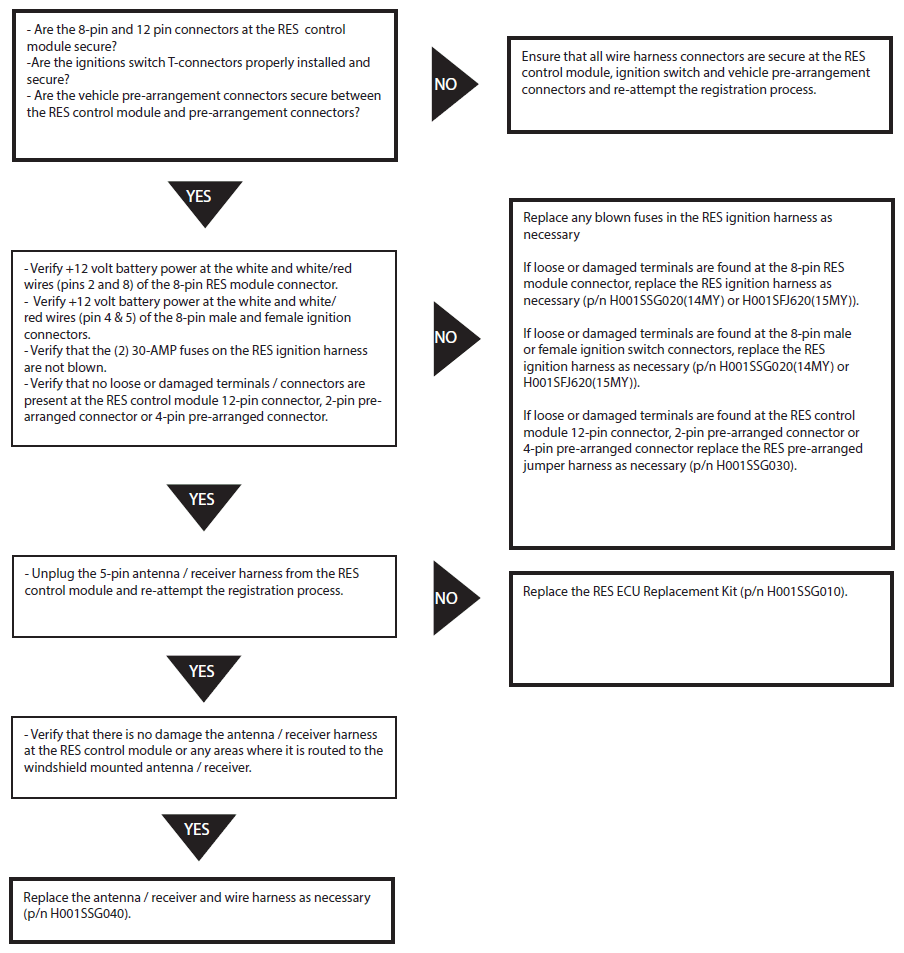

REMOTE ENGINE START CONTROL MODULE REGISTRATION PROCEDURE - SSMIII
- Use of Subaru Diagnostic Interface (SDI) is required.
- Verify SSM III (SDI) software is current.
REMOTE ENGINE START CONTROL MODULE REGISTRATION PROCEDURE - DST-I

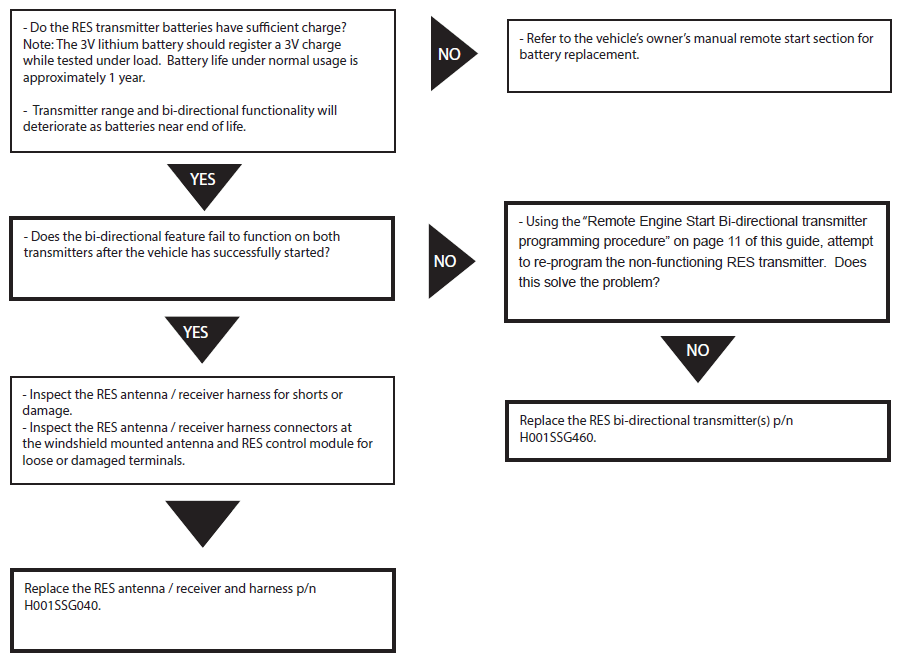

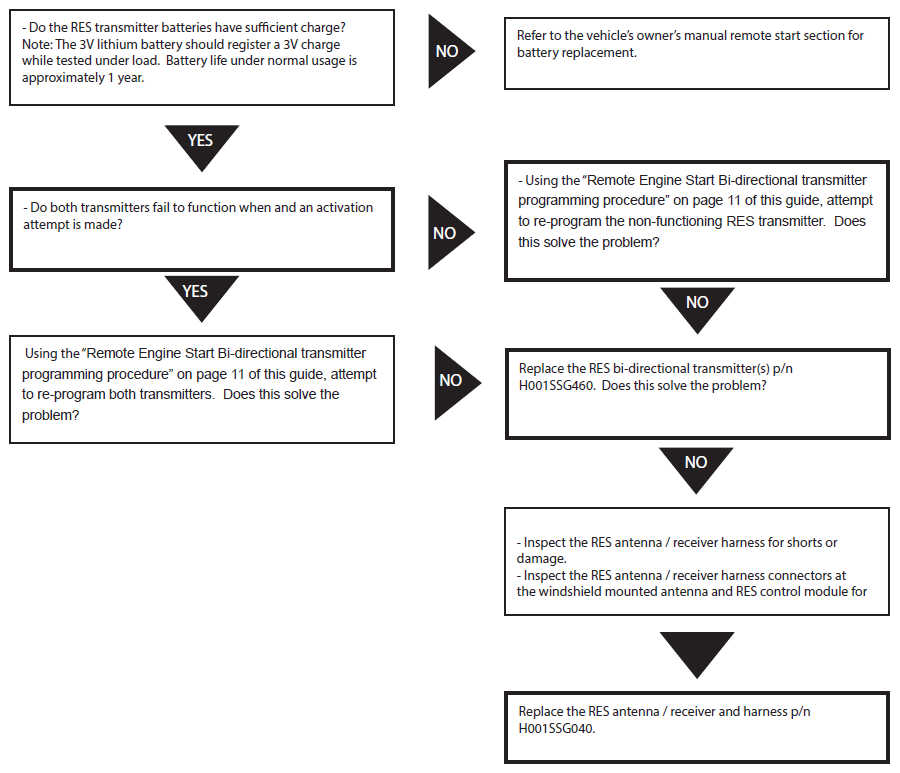

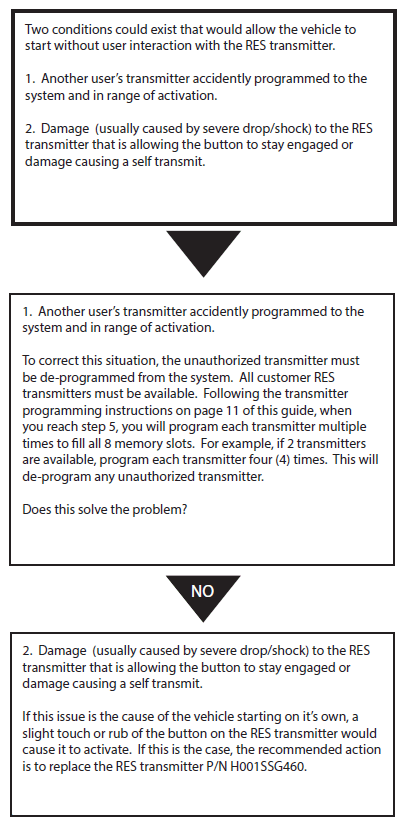

REMOTE ENGINE START BI-DIRECTIONAL TRANSMITTER PROGRAMMING PROCEDURE
NOTE:
Up to eight (8) transmitters can be programmed to the remote engine start system.
- Open the driver's door (the driver's door must remain open throughout the entire process).
- Depress and hold the vehicle's brake pedal.
- Turn the ignition to the "on" then "off", "on" then "off", "on" then "off", then back "on" and leave "on" throughout the programming process. (Four ignition key cycles ending in "on", total duration from point of first ignition "on cycle must not exceed five (5) seconds)
- The system will flash the side marker lights, tail lights, front position lights and honk the horn three (3) times, indicating that the system has entered transmitter learn mode.
- Press and release the button on the transmitter you wish to program.
- The system will fl ash the side marker lights, tail lights, front position lights and honk the horn one (1) time, indicating that the system has learned the transmitter. Upon successful programming, the remote start confirming transmitter button will fl ash one (1) time (within five (5) seconds).
- Repeat step five for any additional transmitters (the system will accept up to eight (8) transmitters).
- The system will exit transmitter programming mode if the ignition key is turned to the OFF position, the door is closed or after two (2) minutes.

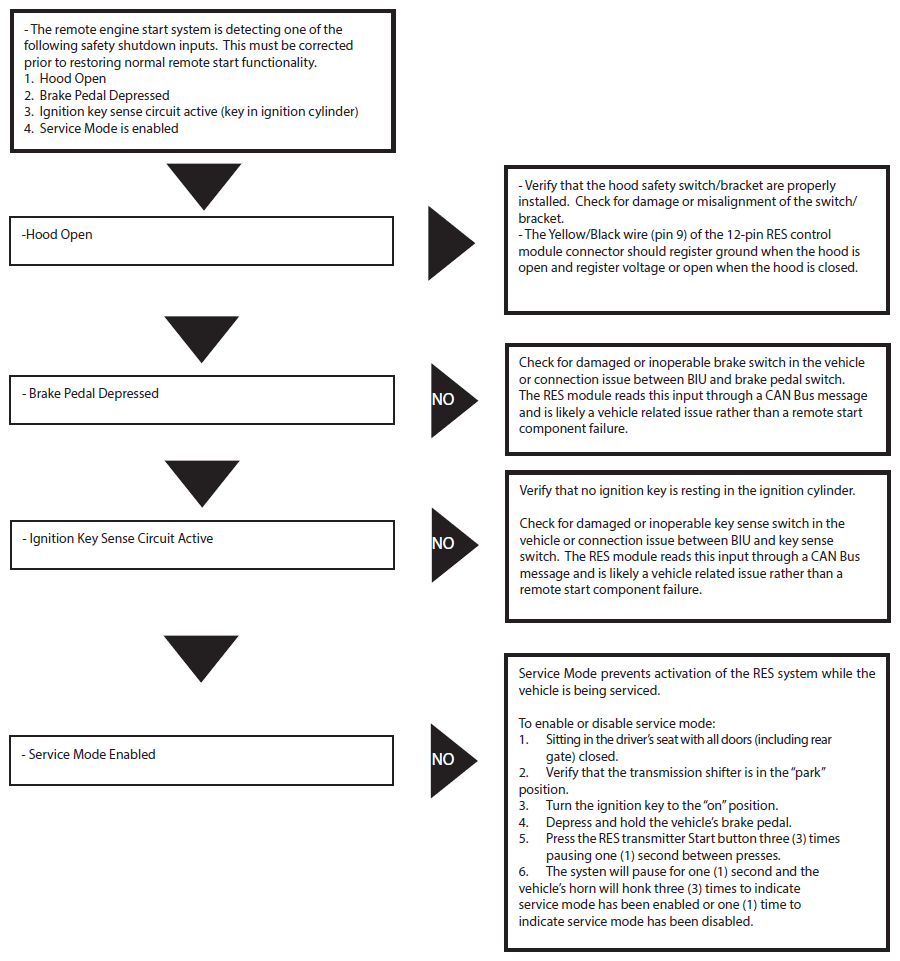

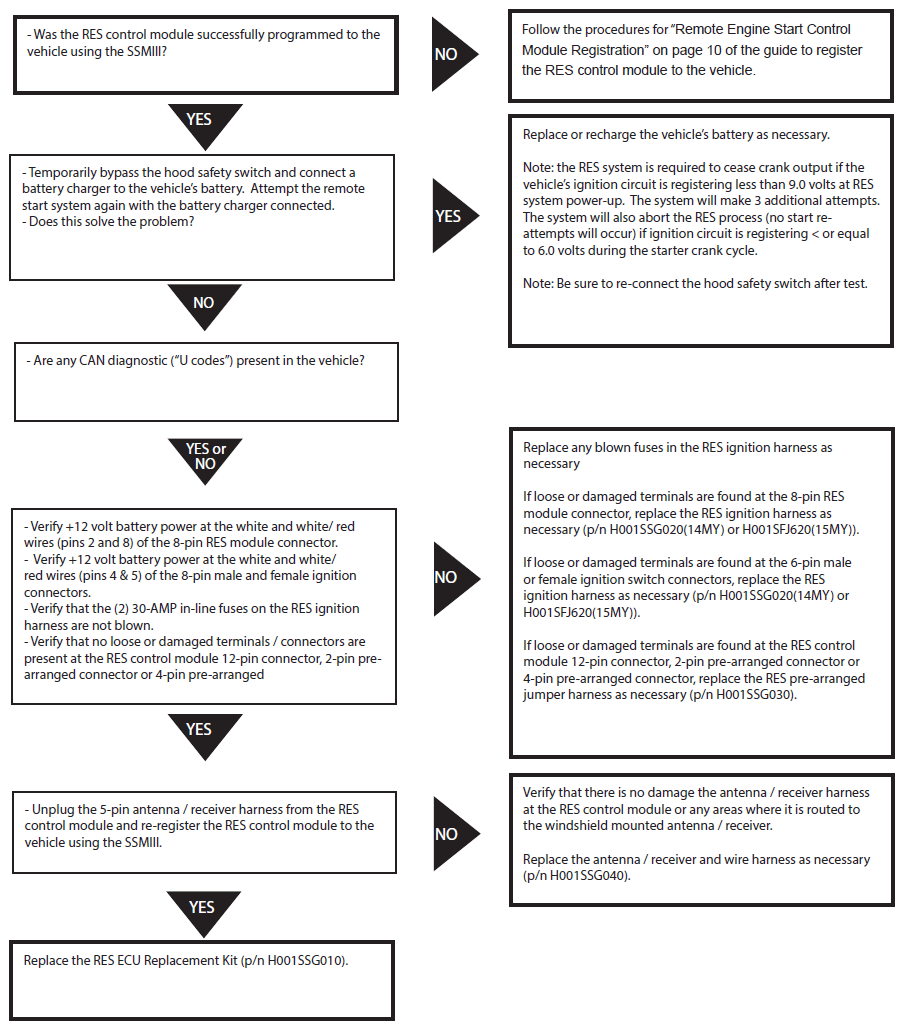

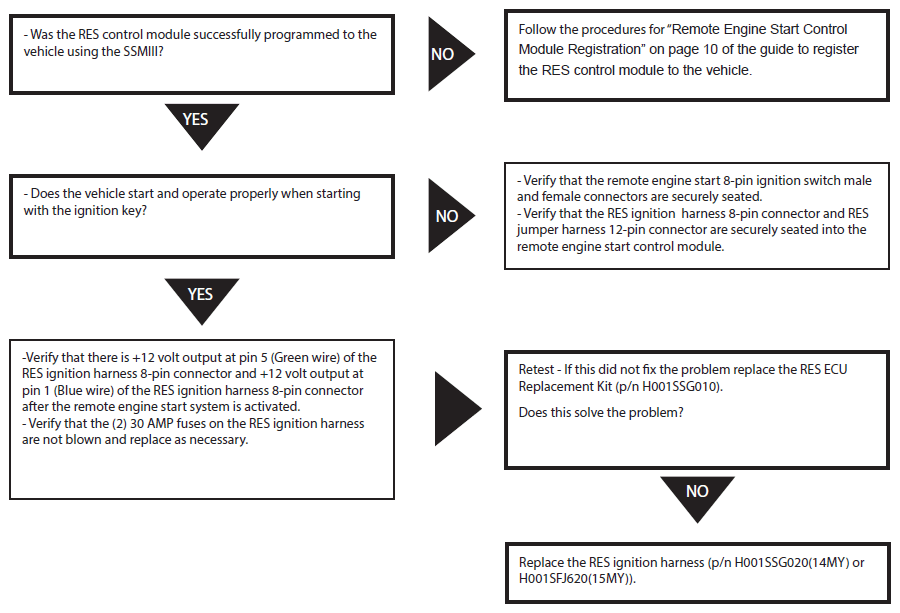

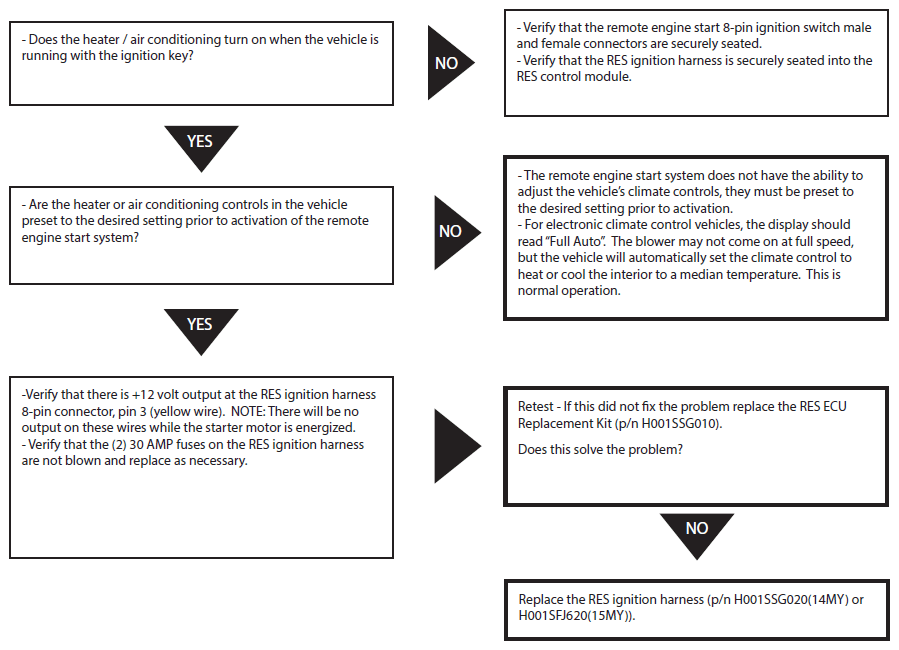

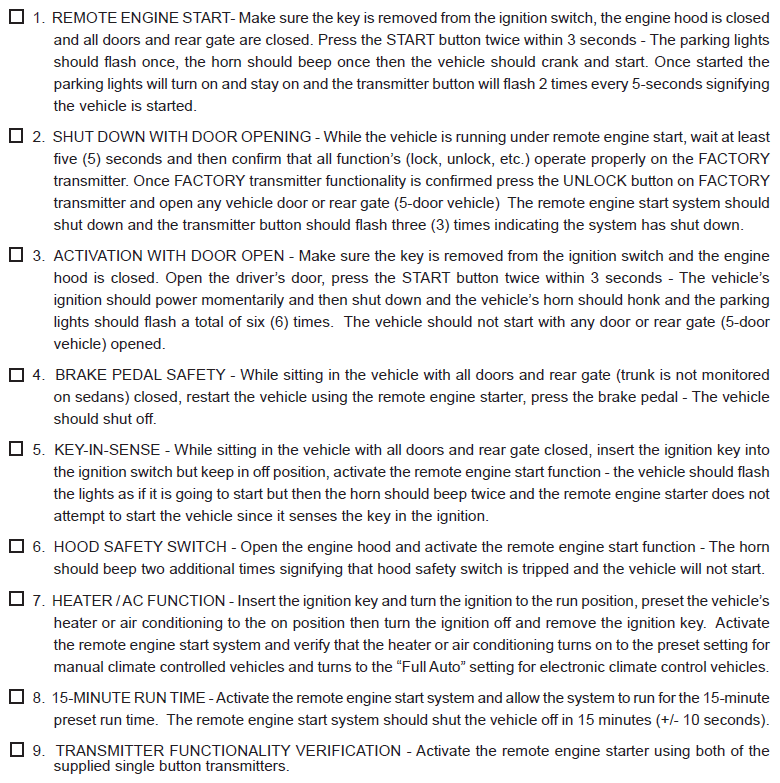

REMOTE ENGINE START DIAGNOSTIC MODE
The Forester remote engine start module is equipped with a diagnostic mode that will aid in troubleshooting abnormal failure to start or abnormal shut down conditions. The diagnostic mode saves the last abnormal failure to start or abnormal shut down in memory. Normal shut downs will not be included in the diagnostic table. Normal shutdowns include: 15-minute run time expiration, shut down or failure to start when the vehicle door is opened, shut down via RES transmitter and failure to start when the service mode is active.
Accessing diagnostic mode (same as transmitter learn mode):
- Open the driver's door (the driver's door must remain open throughout the entire process).
- Depress and hold the vehicle's brake pedal.
- Turn the ignition to the "on" then "off", "on" then "off", "on" then "off", then back "on" and leave "on" throughout the programming process. (Four ignition key cycles ending in "on", total duration from point of first ignition "on cycle must not exceed five (5) seconds)
- The system will fl ash the side marker lights, tail lights, front position lights and honk the horn three (3) times, indicating that the system has entered transmitter learn mode.
- Release the brake pedal and then immediately press and release the brake pedal again.
- The system will fl ash the side marker lights, tail lights, front position lights and honk the horn a number of times corresponding with the table below.
| Horn Honks | Shutdown Condition | Diagnosis |
|---|---|---|
| No Honk | Normal Operation | Normal remote start operation. No abnormal shut downs have occurred since installation of the system. |
| 1 Honk | Hood Safety Switch Active | Verify that hood is closed and latched. Check for damaged or mis-aligned hood switch/bracket. |
| 2 Honks | Brake Pedal Depressed | Check for damaged or inop brake switch in vehicle or connection issue between BIU and brake pedal switch. This does not indicate failure of an RES component. |
| 3 Honks | RES Stop Request | The vehicle's BIU sent a "stop request" to the RES module to indicate a vehicle related concern (DTC's, etc.). Vehicle condition must be corrected prior to restoring RES operation. This does not indicate failure of an RES component. Contact SOA for a listing of conditions and DTC's that would cause the BIU to transmit an "RES Stop Request" message. |
| 4 Honks | RPM Over-rev | The RES module reads a CAN message to determine engine speed (> 3,500 RPM). Check vehicle systems to determine what would cause an abnormal high RPM. This does not indicate failure of an RES component. |
| 5 Honks | Missing CAN Messages | The RES system detected missing CAN Bus messages from the BIU or TCU. Verify proper operation of both BIU and TCU. This does not indicate failure of an RES component. |
| 6 Honks | Shifter Not in Park | This indicates that the shifter was not in park at time of RES activation or was moved out of park after RES activation. Verify operation of transmission/shifter switches. Verify operation of the BIU and TCU. This does not indicate failure of an RES component. |

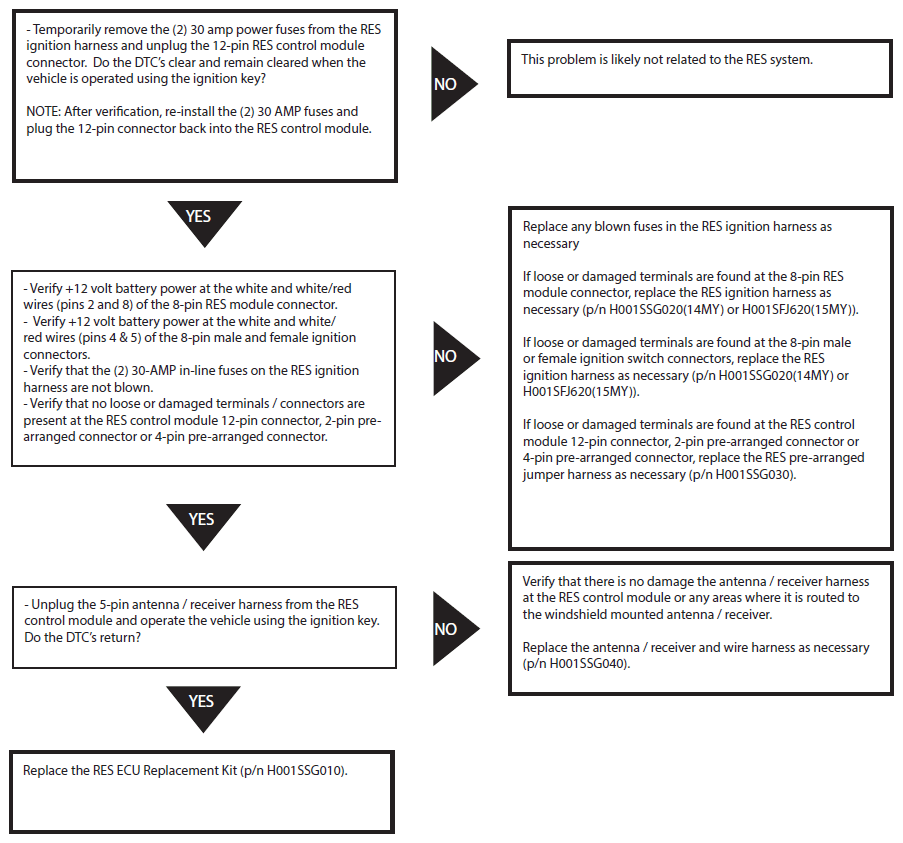

| 7 Honks | CAN Error | This fault indicates that the RES module recorded 24 or more CAN error messages. Clear any vehicle DTC's that are present and re-test. If DTC's continue to occur, remove the (2) 30 AMP fuses from the RES main harness. If DTC's return, there is an issue with another vehicle component. If DTC's do not return or return only when RES system is running the vehicle , replace the RES control module p/n H001SFJ010. |
