Main Switch

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .
  3. Remove the panel - power window main switch.
CAUTION: Be careful not to damage the trim panel - front door with the panel - power window main switch.
  1. Remove the screws and disconnect the connector.

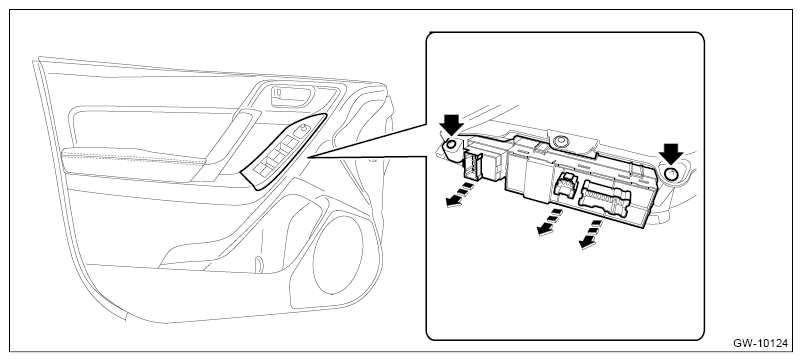

    Fig 1: Locating Panel - Power Window Main Switch Screws
    G11268729Courtesy of SUBARU OF AMERICA, INC.
  2. Release the claws, and then remove the panel - power window main switch.

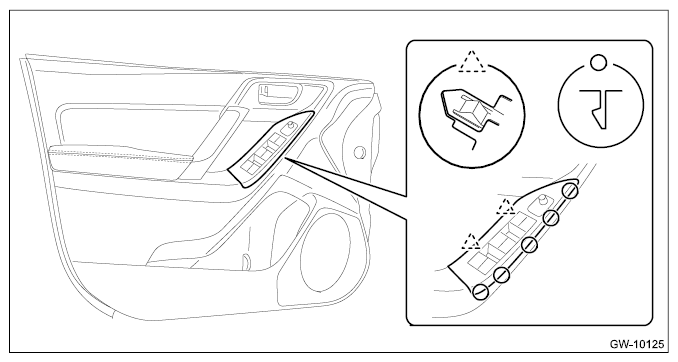

    Fig 2: Locating Panel - Power Window Main Switch Claws
    G11268730Courtesy of SUBARU OF AMERICA, INC.
  3. Release the claws, and then remove the switch - power window main.
Fig 3: Releasing Switch - Power Window Main Claws
G09484435Courtesy of SUBARU OF AMERICA, INC.
