VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)

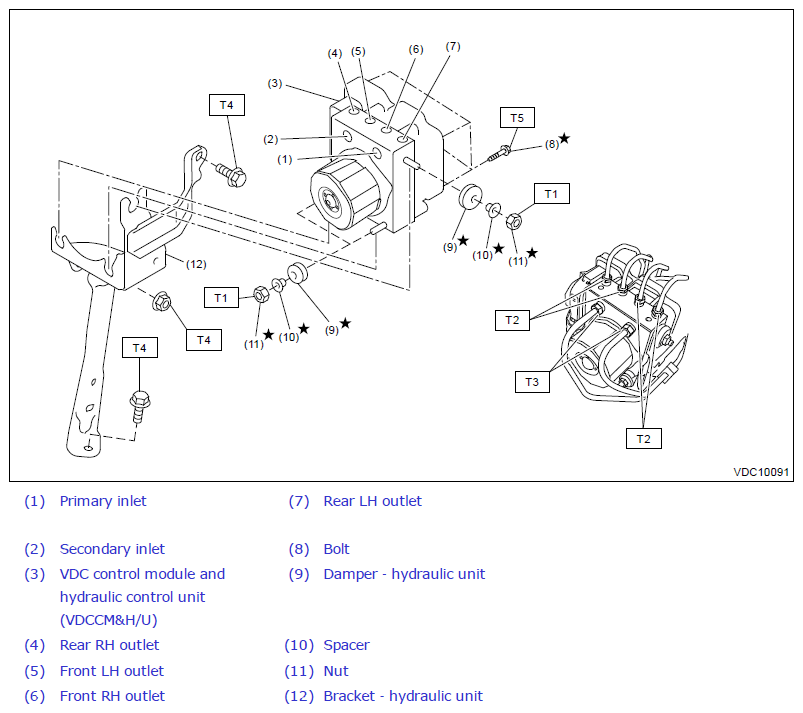

- Models without EyeSight
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.76, 5.5)
T2: 15 (1.53, 11.1)
T3: 19 (1.94, 14)
T4: 33 (3.36, 24.3)
T5: Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)>REPLACEMENT .
- Models with EyeSight

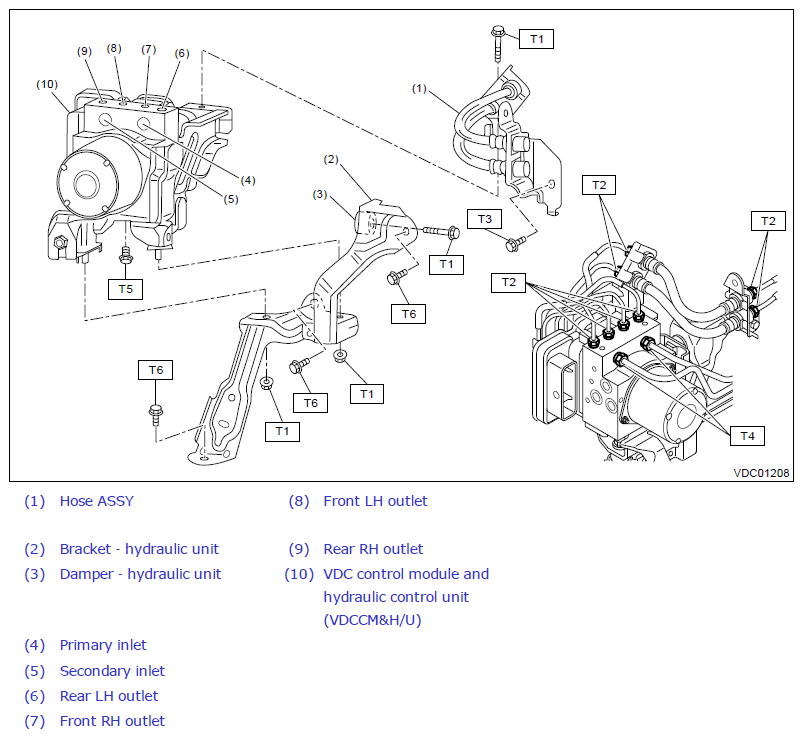

Fig 2: Exploded View Of VDC Control Module And Hydraulic Control Unit - Models With Eyesight With Torque Specifications
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.76, 5.5)
T2: 15 (1.53, 11.1)
T3: 18 (1.84, 13.3)
T4: 19 (1.94, 14)
T5: 27 (2.75, 19.9)
