Rear ABS Wheel Speed Sensor: Removal

CAUTION:

• Be careful not to damage the sensor.
• Do not apply excessive force to the sensor harness.
• Leave the sensor harness clamp on the vehicle side.

1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Lift up the vehicle, and then remove the rear wheels.
3. Tilt the backrest assembly of the rear seat forward.
4. Remove the clips located at the bottom of the cover COMPL - rear backrest LH and RH of the rear seat back.

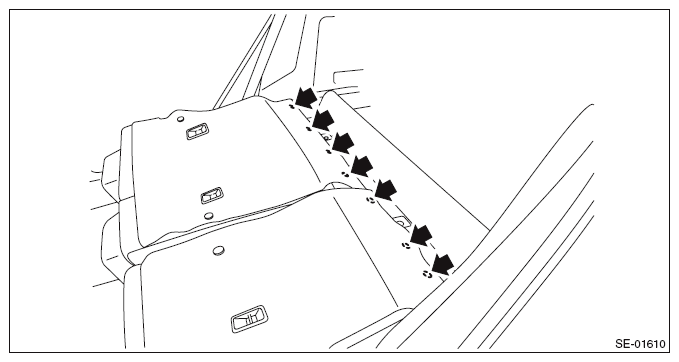

   Fig 1: Locating Clips At Bottom Of Cover COMPL - Rear Backrest

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the mat - rear floor CTR (a) and the mats - rear floor (b) of right and left sides.

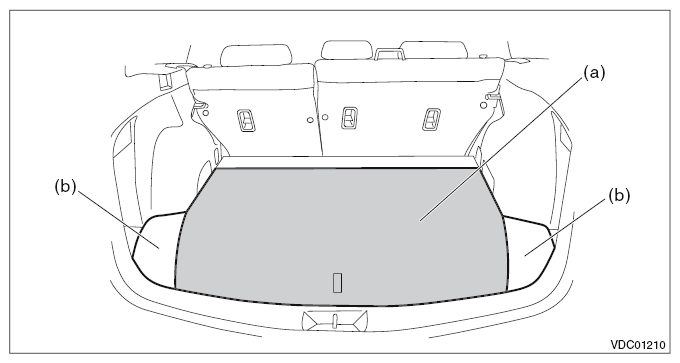

   Fig 2: Identifying Mat - Rear Floor (CTR) And Mat - Rear Floor

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the clips and remove the cover - trunk (a) and right and left spacers - rear front side (b).

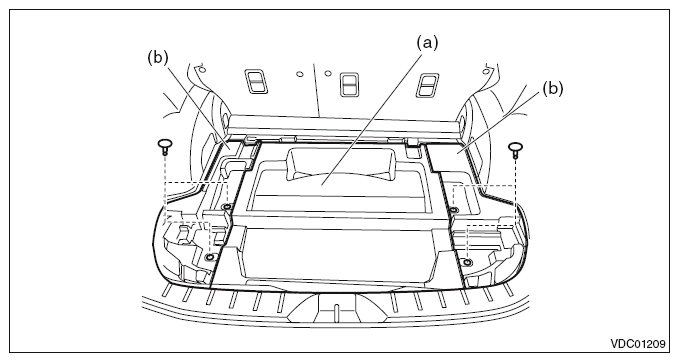

   Fig 3: Removing Clips Of Cover - Trunk

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the spacer - rear floor front.
   1. Remove the spacer - rear floor front center (a).
   2. Disconnect the connector and remove the rear antenna assembly - interior (b).
   3. Remove the clips and spacer - rear floor front (c).

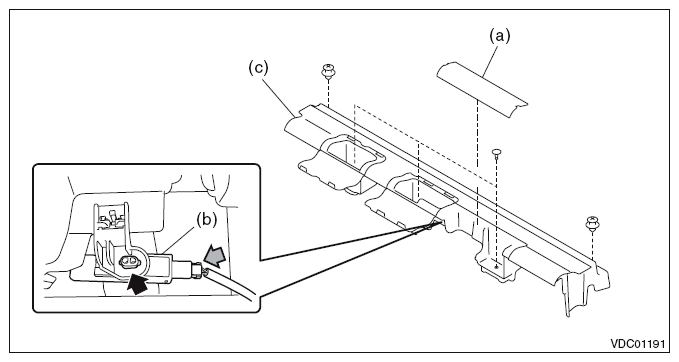

   Fig 4: Removing Clips And Spacer - Rear Floor Front

   Courtesy of SUBARU OF AMERICA, INC.
8. Disconnect the connector of the rear ABS wheel speed sensor.

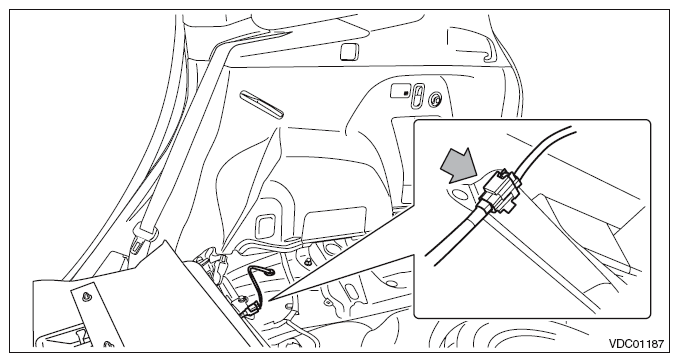

   Fig 5: Locating Rear ABS Wheel Speed Sensor Connector

   Courtesy of SUBARU OF AMERICA, INC.
9. Remove the grommet from the rear wheel housing, and pull out the connector of the rear ABS wheel speed sensor.
10. Remove the harness clip and bolt, and remove the rear ABS wheel speed sensor.

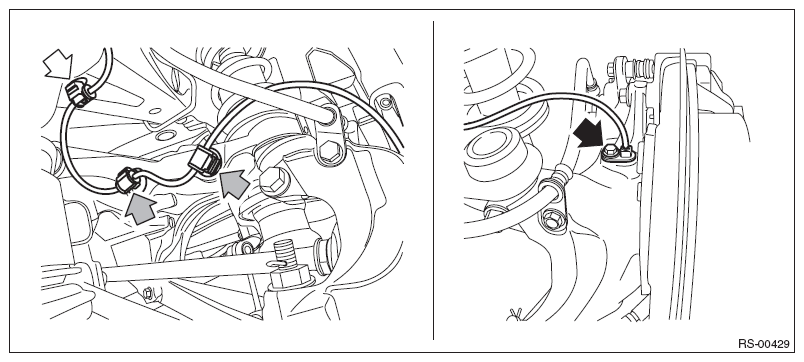

Fig 6: Locating Rear ABS Wheel Speed Sensor Bolt

Courtesy of SUBARU OF AMERICA, INC.
