VDC OFF Switch: Removal

Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
Remove the screws and release the claws, then detach the cover. (Model without power rear gate)

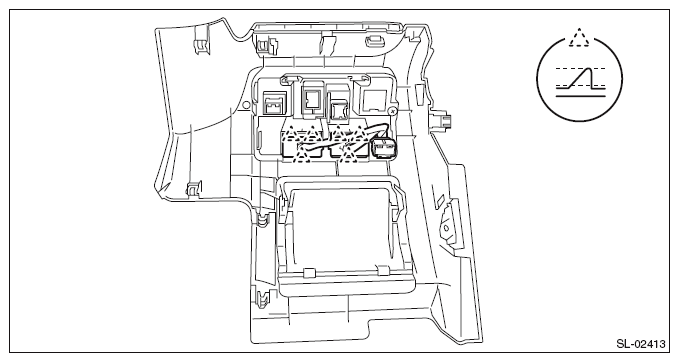

Fig 1: Locating Cover Screws And Claws (Model Without Power Rear Gate)
Courtesy of SUBARU OF AMERICA, INC.
Release the claws and remove the VDC OFF switch.
- Model without power rear gate

  Fig 2: Locating Claws And VDC OFF Switch (Model Without Power Rear Gate)
  Courtesy of SUBARU OF AMERICA, INC.
- Model with power rear gate

Fig 3: Locating Claws And VDC OFF Switch (Model With Power Rear Gate)

Courtesy of SUBARU OF AMERICA, INC.
