Components With Torque Specifications

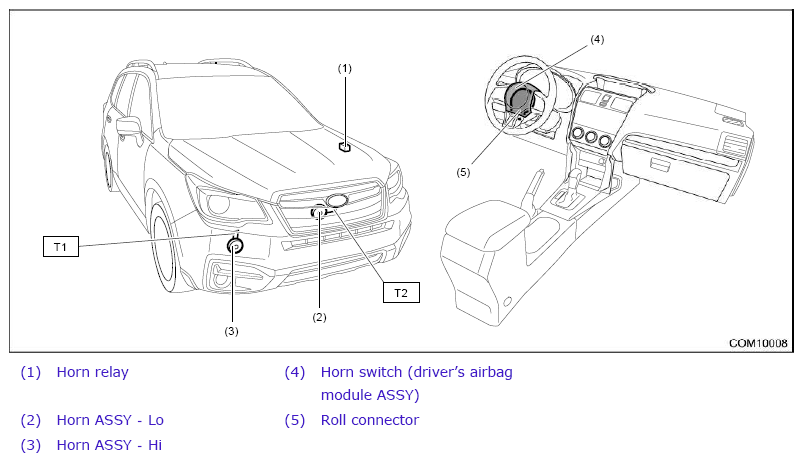

Fig 1: Identifying Communication Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.33, 9.6)

T2: 18 (1.84, 13.3)
