Fuel Injector Relay: Removal

1. Disconnect the ground cable from battery.
2. Remove the cover from the relay block on the front side of the front strut RH.

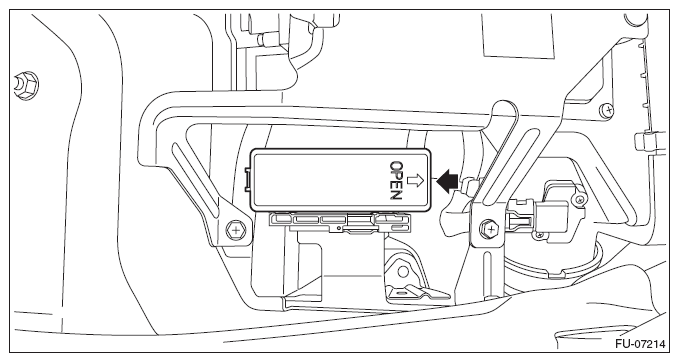

   Fig 1: Locating Relay Block Cover

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the fuel injector relay from relay block.

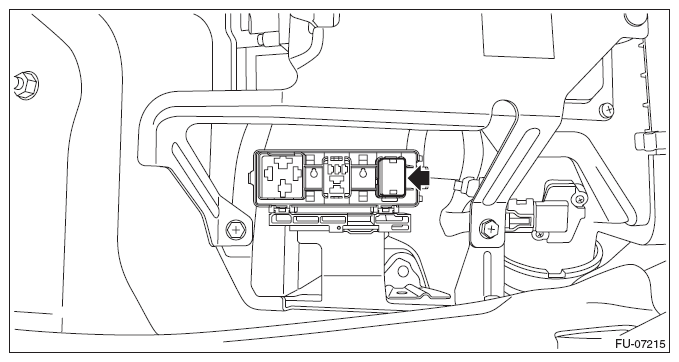

Fig 2: Locating Fuel Injector Relay From Relay Block

Courtesy of SUBARU OF AMERICA, INC.
