Fuel Pump Control Unit: Removal

1. Disconnect the ground cable from battery.
2. Remove the right side rear quarter trim. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .
3. Disconnect the connector (A), and remove the fuel pump control unit.

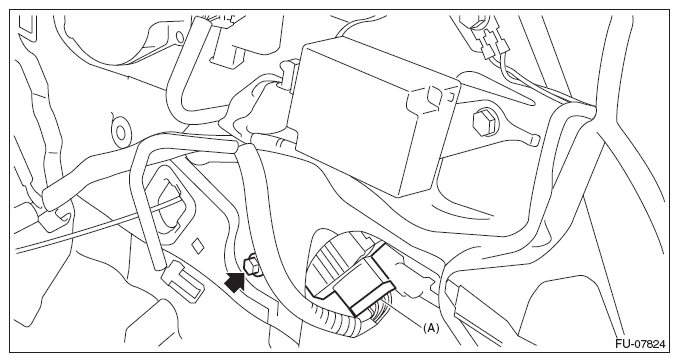

Fig 1: Locating Fuel Pump Control Unit Bolt

Courtesy of SUBARU OF AMERICA, INC.
