Transmission Control Module (TCM): Removal

1. Disconnect the ground cable from battery.
2. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

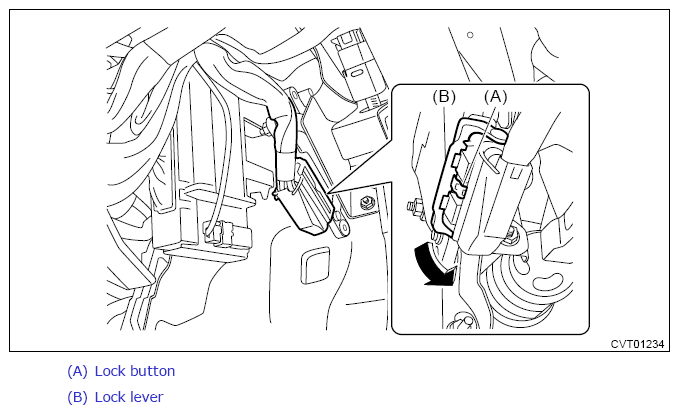

   Fig 1: Removing Transmission Control Module Connector

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the TCM.
   Fig 2: Identifying Transmission Control Module

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the TCM from the bracket.

Fig 3: Identifying Transmission Control Module Bracket

Courtesy of SUBARU OF AMERICA, INC.
