Starting System & Charging System: Starter: Disassembly

CAUTION: The starter should be placed through a no-load test whenever it has been overhauled.

1. Disconnect the cable from the M terminal.
   Fig 1: Locating Cable From M Terminal

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the magnet switch assembly.
   Fig 2: Locating Magnet Switch Assembly Screws

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolt (A) and through bolts (B), and remove the starter cover.
   Fig 3: Removing Starter Cover

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the brush holder assembly.
   NOTE: Hold the brush with your fingers so that the brush spring does not come flying out.
   Fig 4: Removing Brush Holder Assembly

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the armature assembly and yoke assembly together as a single unit.
   Fig 5: Removing Armature Assembly And Yoke Assembly Single Unit

   Courtesy of SUBARU OF AMERICA, INC.
6. Separate the armature assembly and yoke assembly.
   Fig 6: Separating Armature Assembly And Yoke Assembly

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the pinion gear.
   Fig 7: Removing Pinion Gear

   Courtesy of SUBARU OF AMERICA, INC.

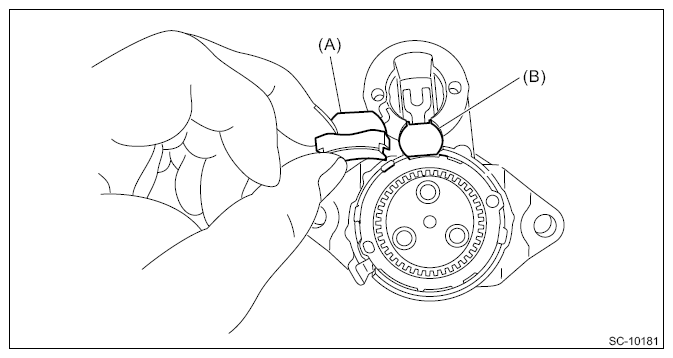

8. Remove the seal rubber (A) and plate (B).
   Fig 8: Removing Seal Rubber And Plate

   Courtesy of SUBARU OF AMERICA, INC.
9. Lightly tap the starter housing with a plastic hammer as shown in the figure, and remove the overrunning clutch, internal gear, shaft and shift lever together as one unit.
   Fig 9: Tapping Starter Housing With Plastic Hammer

   Courtesy of SUBARU OF AMERICA, INC.
10. Use the following procedures to remove the overrunning clutch.
    1. Set an appropriate tool (suitable attachment, etc.), and remove the stopper from snap ring by lightly tapping the stopper with a plastic hammer.
       Fig 10: Tapping Stopper With Plastic Hammer

       Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the snap ring (A), and remove the stopper (B).
       Fig 11: Removing Snap Ring

       Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the overrunning clutch.
    Fig 12: Removing Overrunning Clutch

    Courtesy of SUBARU OF AMERICA, INC.
11. Remove the internal gear.

Fig 13: Removing Internal Gear

Courtesy of SUBARU OF AMERICA, INC.
