Steering Gearbox

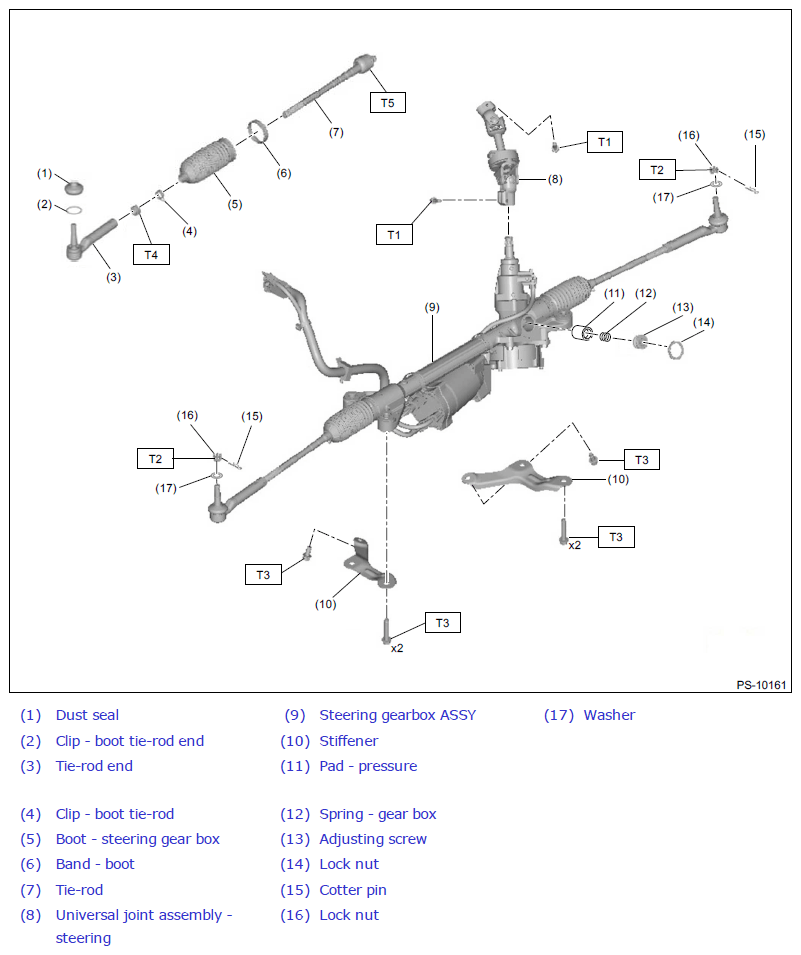

Fig 1: Identifying Steering Gearbox Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)>

T1: 24 (2.4, 17.7)>

T2: 27 (2.8, 19.9)>

T3: 60 (6.1, 44.3)>

T4: 85 (8.7, 62.7)>

T5: 90 (9.2, 66.4)>
