Trunk Lid

  1. Remove the garnish assembly - trunk. <Ref. to REMOVAL , Trunk Lid Garnish.>
  2. Remove the key cylinder.

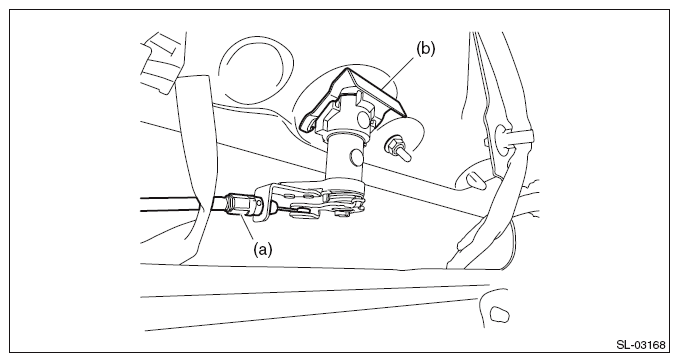

    1. Remove the cable (a) and clip (b).
      Fig 1: Locating Key Lock Cylinder Cable
      G10272965Courtesy of SUBARU OF AMERICA, INC.

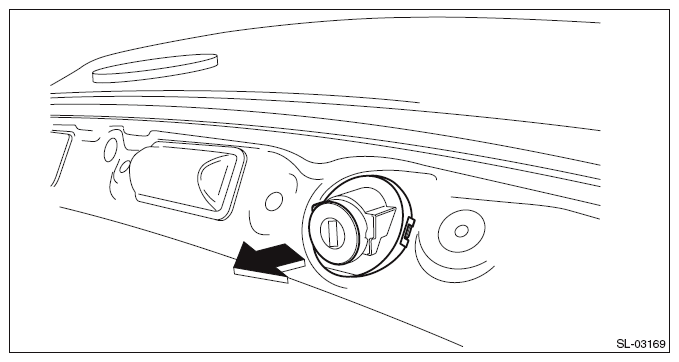

    2. Remove the key cylinder from the trunk lid, and replace the key cylinder.
    Fig 2: Removing Key Lock Cylinder Clip
    G10272966Courtesy of SUBARU OF AMERICA, INC.
