Main Switch

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to BATTERY
  2. Remove the trim panel - front door. Ref. to FRONT DOOR , REMOVAL, Door Trim.
  3. Remove the panel - power window main switch.
CAUTION: Be careful not to damage the trim panel - front door with the panel - power window main switch.
  1. Insert a sheet of protective paper (a) between panel - power window main switch and trim panel - front door.
  2. Remove the screws.

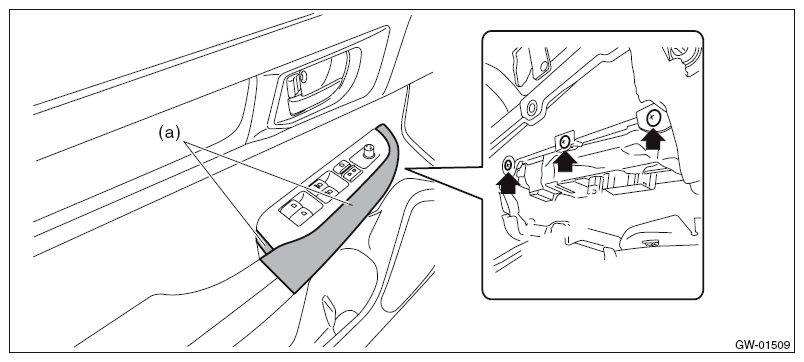

    Fig 1: Identifying Power Window Main Switch Panel Screws
    G10272704Courtesy of SUBARU OF AMERICA, INC.
  3. Release the claws, and then remove the panel - power window main switch.

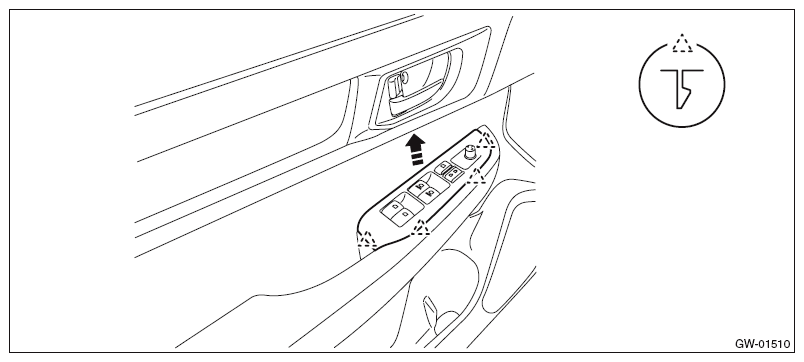

    Fig 2: Identifying Power Window Main Switch Panel Claws
    G10272705Courtesy of SUBARU OF AMERICA, INC.
  4. Release the claws, and then remove the switch - power window main.

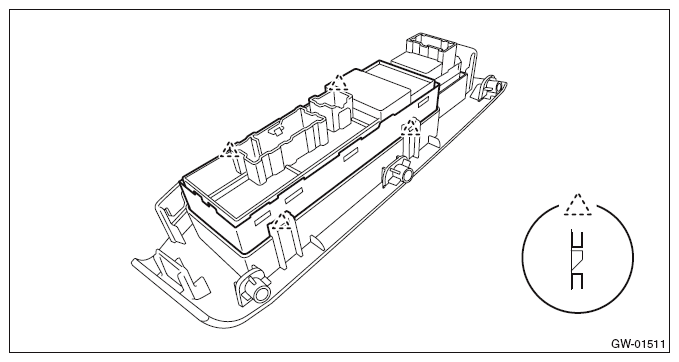

Fig 3: Removing Power Window Main Switch Claws
G10272706Courtesy of SUBARU OF AMERICA, INC.
