Front Regulator and Motor Assembly: Removal

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to BATTERY
Remove the trim panel - front door. Ref. to FRONT DOOR , REMOVAL, Door Trim.
Remove the sealing cover - front door. Ref. to REMOVAL , Front Sealing Cover.
Remove the glass assembly - front door. Ref. to REMOVAL , Front Door Glass.
Remove the regulator and motor assembly - front.
1. Disconnect the motor - front connector.
2. Remove the bolts, and then remove the regulator and motor assembly - front.

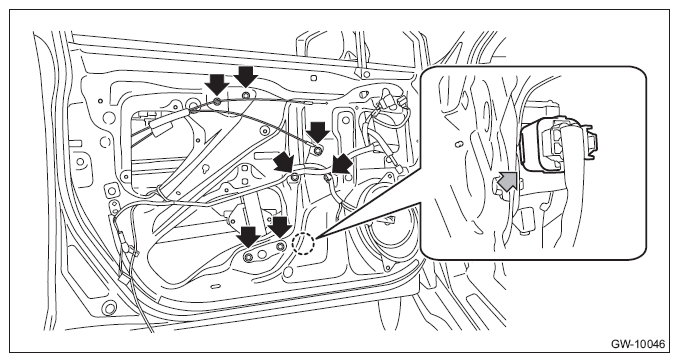

Fig 1: Identifying Front Regulator Bolts And Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.
