When Using Piano Wire

CAUTION:

Do not tightly pull the piano wire against the glass - front window edge.
Apply protective tape, etc, and be careful that the inner and outer components of the vehicle are not damaged.
Do not cross piano wires. Otherwise they may be cut.

Disconnect the ground terminal from battery sensor. (Models with wiper deicer) Ref. to BATTERY
Remove the trim panel - front pillar UPR. Ref. to REMOVAL , Upper Inner Trim.
Remove the cowl panel assembly. Ref. to REMOVAL , Cowl Panel.
Disconnect the wiper deicer connector. (Models with wiper deicer)
Remove the stereo camera cover assembly and stereo camera assembly. (Models with EyeSight) Ref. to REMOVAL , Stereo Camera.
Disconnect the connector of automatic anti-glare mirror. (Model with automatic anti-glare mirror and model with HBA)
Remove the molding - front window from the glass - front window, and attach protective tape on the body side of the circumference of the glass - front window.

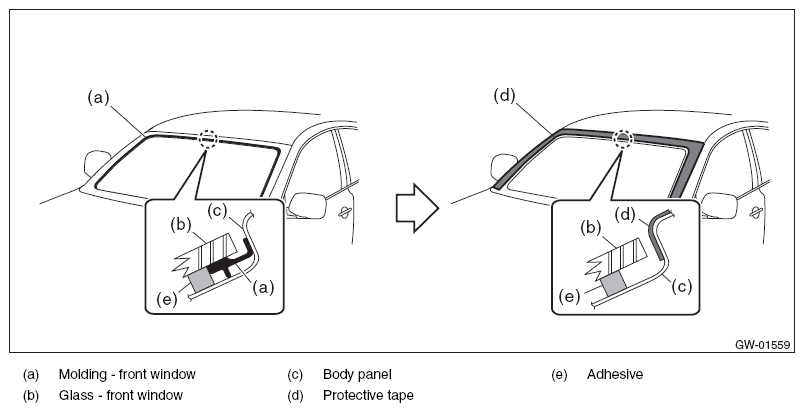

Fig 1: Identifying Front Window Glass Molding And Tape On Body Panel
Courtesy of SUBARU OF AMERICA, INC.
Remove the glass - front window.
1. Using a drill, make a hole in the adhesive part.
2. Pass the piano wire through the hole, and pull the wire ends alternately to cut off the adhesive part and the locating pin - front window.
CAUTION: Attach a piece of wood to both piano wire ends.

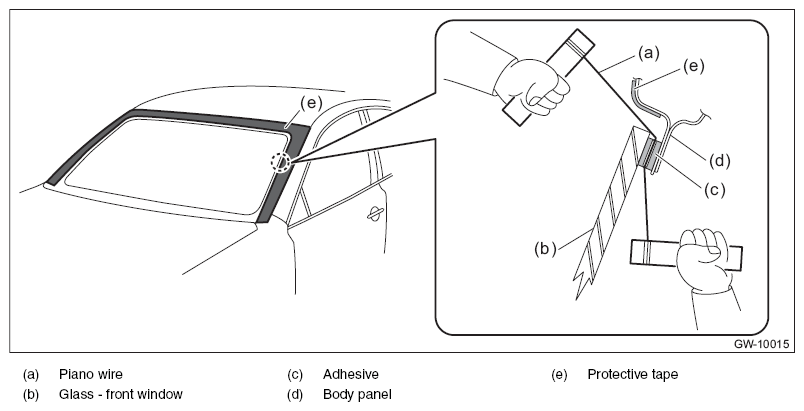

Fig 2: Cutting Off Locating Pin And Adhesive
Courtesy of SUBARU OF AMERICA, INC.
