VDC Control Module and Hydraulic Control Unit (VDCCM & H/U): Removal

CAUTION:

• Avoid unnecessary removal of parts in order to prevent fluid leakage.
• When the VDCCM & H/U components are removed, be sure to perform the installation according to the installation procedures. Ref. to INSTALLATION , VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).

1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
   NOTE: Repair Contents.
2. Remove the air intake boot. Ref. to BATTERY
   NOTE: Repair Contents.
3. Remove the VDC control module & hydraulic control unit (VDCCM & H/U).

CAUTION:

• Do not pull on the harness when disconnecting the connector.
• Wrap the brake pipe with a vinyl bag so as not to spill the brake fluid on the painted surface of the vehicle body.
• If brake fluid is spilled on the painted surface of the vehicle body, wash it off immediately with water and wipe clean.

1. Remove any dirt from around the VDCCM & H/U.
2. Pull up the lock lever (b) while pressing the lock button (a) and disconnect the VDCCM & H/U connector.
   Fig 1: Lock Lever And Button Location

   Courtesy of SUBARU OF AMERICA, INC.
3. Separate each brake pipe using a flare nut wrench.
   • Models with EyeSight
     Fig 2: Locating Brake Pipe Flare Nut (Models With Eyesight)

     Courtesy of SUBARU OF AMERICA, INC.
   • Models without EyeSight
   Fig 3: Locating Brake Pipe Flare Nut (Models Without Eyesight)

   Courtesy of SUBARU OF AMERICA, INC.

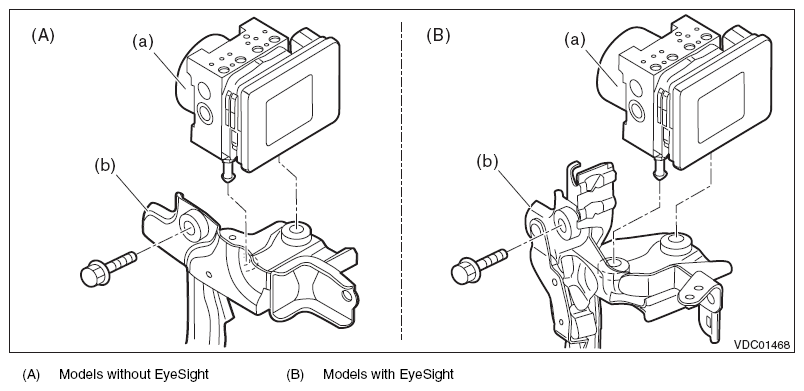

4. Remove the bolts and nuts, and remove the bracket - hydraulic unit and the VDCCM & H/U.

Fig 4: Removing Hydraulic Unit Bracket Bolts And Nuts

Courtesy of SUBARU OF AMERICA, INC.
