Vehicle Dynamics Control (VDC) System (Service Information)
›
VDC Sequence Control
›
Operation
›
Conditions For VDC Sequence Control
Conditions For VDC Sequence Control
NOTE:
The control operation starts at point A.

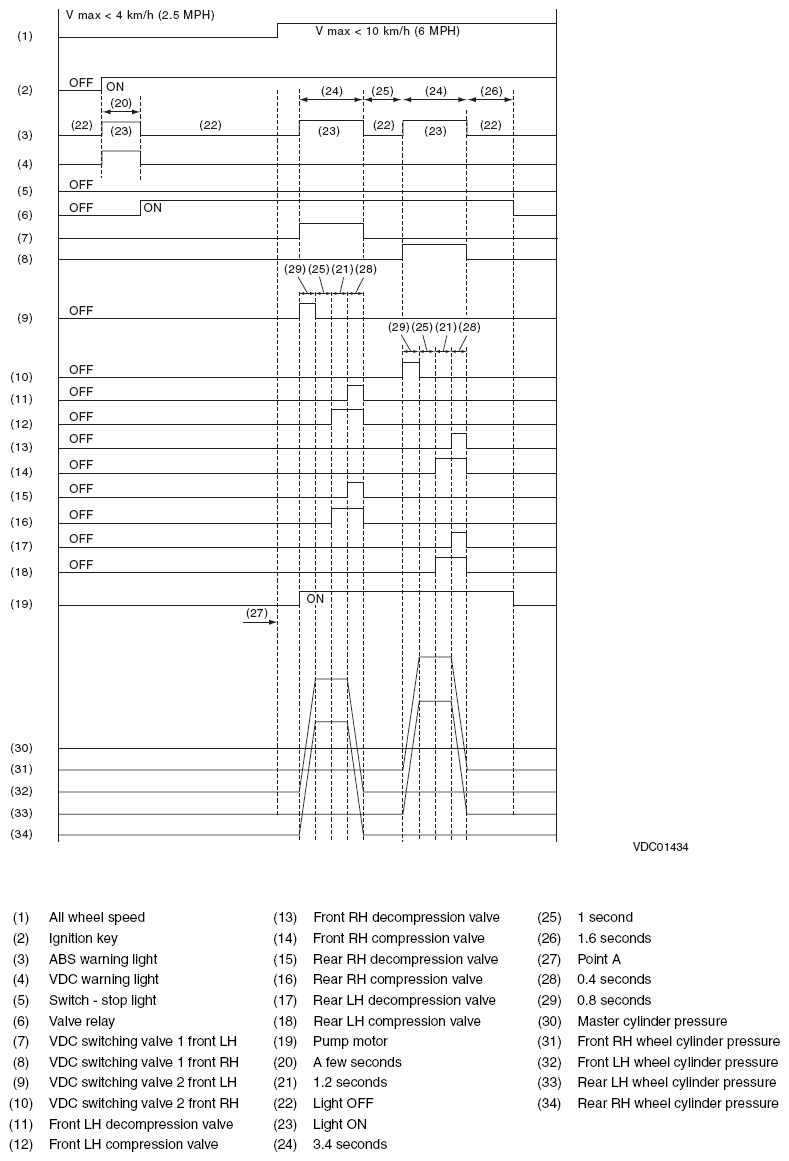

Fig 1: VDC Sequence Control Operation On/Off Pattern
Courtesy of SUBARU OF AMERICA, INC.
