Starting System & Charging System (H4DO): Generator: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
   NOTE: Repair Contents.
2. Remove the V-belts. Ref. to REMOVAL , V-belt.
3. Disconnect the connector (A) and terminal (B) from the generator, and remove the clip (C).
   Fig 1: Identifying Generator Connector And Terminal

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the V-belt cover bracket.
   Fig 2: Identifying V-Belt Cover Bracket Bolts

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the generator from the generator bracket.

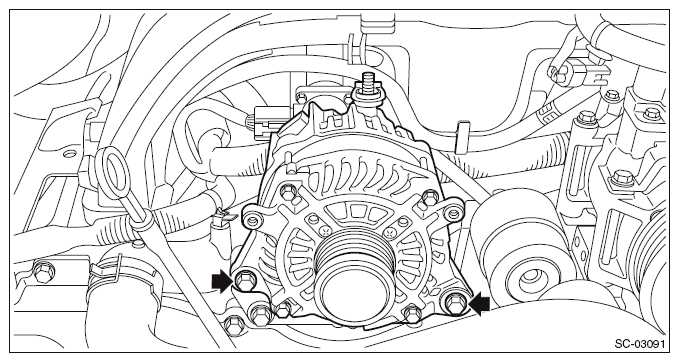

   Fig 3: Identifying Generator Bolts

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the V-belt tensioner assembly. Ref. to V-BELT TENSIONER ASSEMBLY , REMOVAL, V-belt.
7. Remove the generator bracket from the engine.

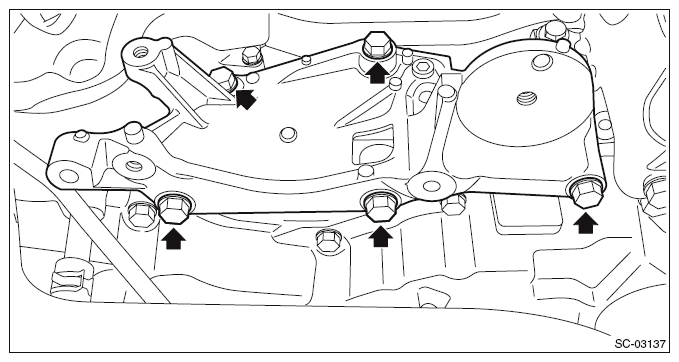

Fig 4: Identifying Generator Bracket Bolts

Courtesy of SUBARU OF AMERICA, INC.
