Combination Meter: Disassembly

CAUTION:

• Use gloves to avoid damage and putting fingerprints on the lens surface and meter surfaces.
• Be sure not to touch the meter indicator needle.
• Because LEDs are used for all of warning lights and indicator lights, they are not removable from the meter - main assembly.

1. Remove the screws, and then remove the outer mask.

   Preparation tool:

   TORX® T10

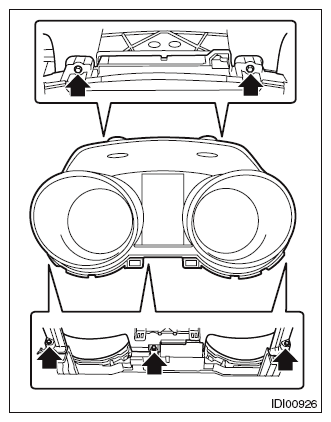

   Fig 1: Locating Outer Mask Screws

   Courtesy of SUBARU OF AMERICA, INC.
2. Release the claws and remove the lens.

Fig 2: Lens Claws Location

Courtesy of SUBARU OF AMERICA, INC.
