Front Exhaust Pipe: Disassembly

1. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe. Ref. to REMOVAL , Front Oxygen (A/F) Sensor. Ref. to REMOVAL , Rear Oxygen Sensor.
2. Remove the center exhaust pipe from the front exhaust pipe.

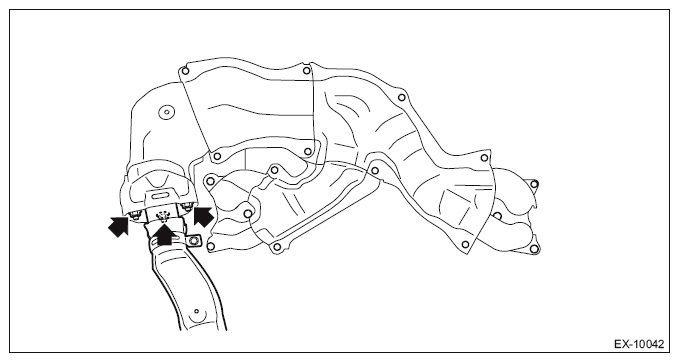

   Fig 1: Locating Front And Center Exhaust Pipe Bolts

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove each cover from the front exhaust pipe.

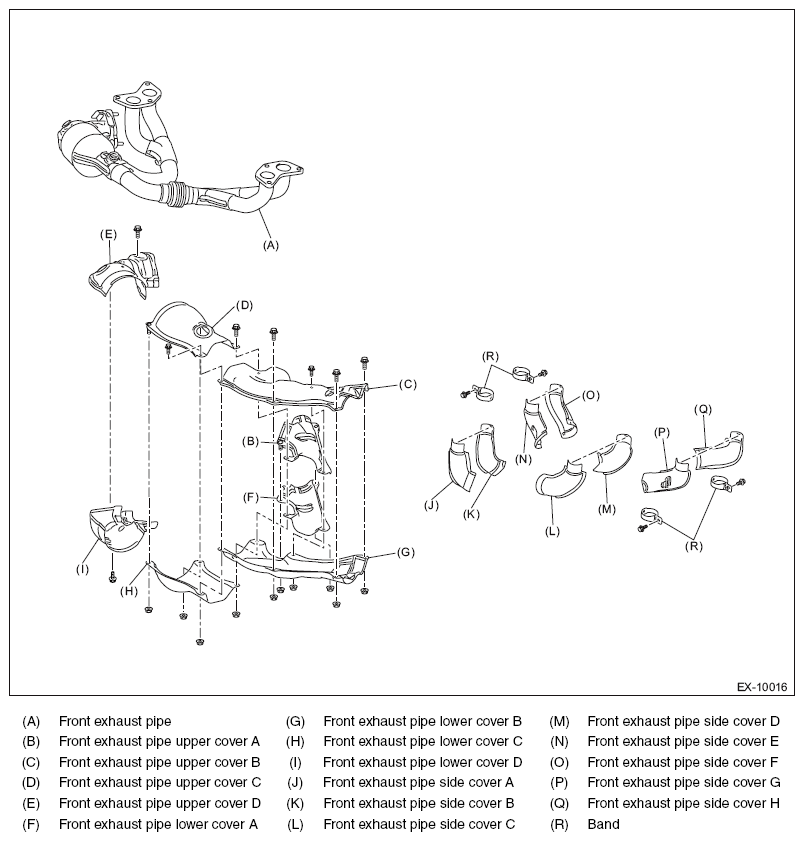

Fig 2: Exploded View Of Front Exhaust Pipe Covers

Courtesy of SUBARU OF AMERICA, INC.
