Oil Level Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
  2. Remove the under cover. Ref. to REMOVAL , Front Under Cover.
  3. Drain the engine oil. Ref. to REPLACEMENT , Engine Oil.
  4. Disconnect the connector of the oil level switch from the engine harness, and remove the clip securing the harness to the front camshaft cap (LH) and the cylinder head (LH).

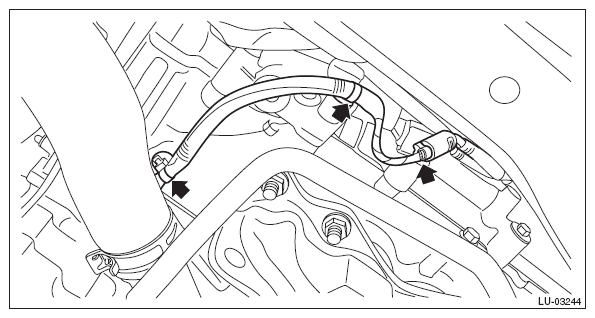

    Fig 1: Identifying Oil Level Switch Harness Clips And Connector
    G10264249Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the oil level switch from the oil pan upper.

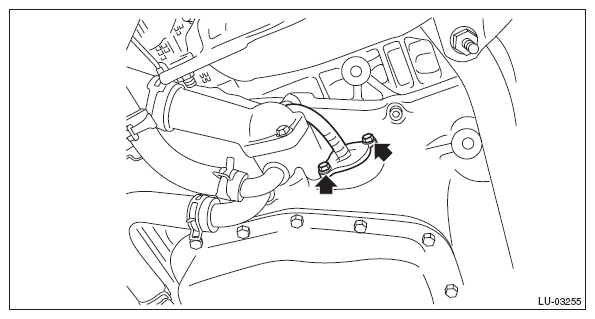

    Fig 2: Locating Oil Level Switch Bolts
    G10264250Courtesy of SUBARU OF AMERICA, INC.
