Radiator Fan Control Module (Main)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
    Fig 1: Removing Collector Cover
    G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
    NOTE: Repair Contents.
  3. Remove the air intake duct. Ref. to REMOVAL , Air Intake Duct.
  4. Disconnect the radiator fan harness connector (A) and radiator main fan motor connector (B) from the radiator fan control module (main).
  5. Remove the bolts securing the radiator fan control module (main), and remove the radiator fan control module (main).

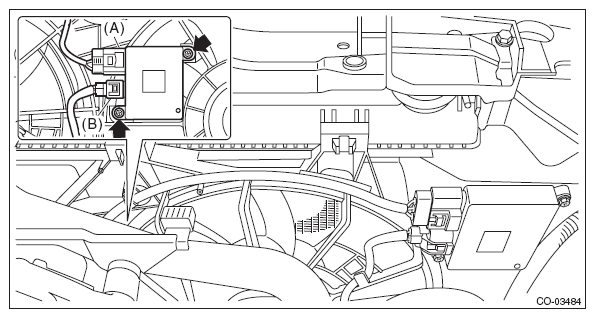

Fig 2: Identifying Radiator Fan Control Module Bolts (Main)
G10264217Courtesy of SUBARU OF AMERICA, INC.
