Rear Seat Belt (Outback Model)

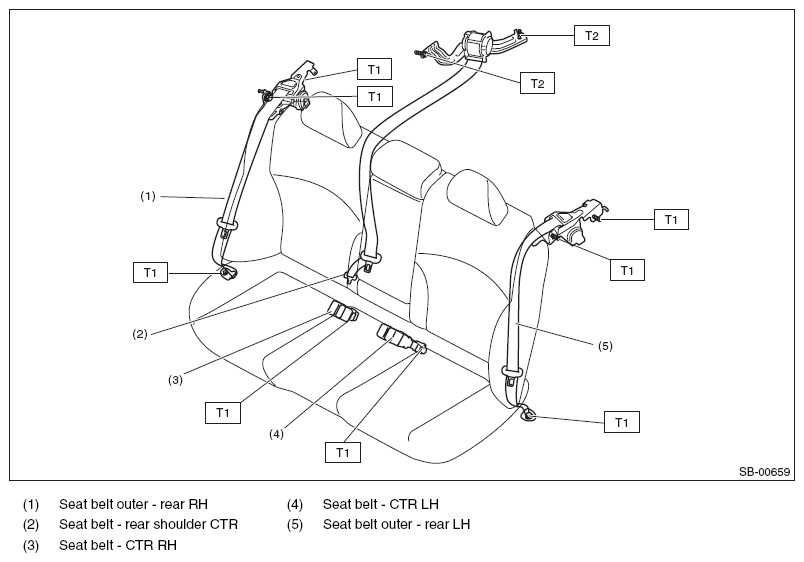

Fig 1: Exploded View Of Rear Seat Belt (Outback Model) Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (Kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 53 (5.4, 39.1)
