Front Camber

1. Adjust the camber angle to the following value.

   Tire size		Camber (difference between RH and LH 45' or less)
   Sedan model	225/55R17 225/50R18	-0°15'±0°30'
   OUTBACK model	225/65R17 225/60R18	0°00'±0°30'

2. Loosen the two flange nuts while holding the strut bolts.
3. Turn the camber adjusting bolt so that the camber is set at specification.
   NOTE: Moving the adjusting bolt by one scale changes the camber by approximately 0°10'.

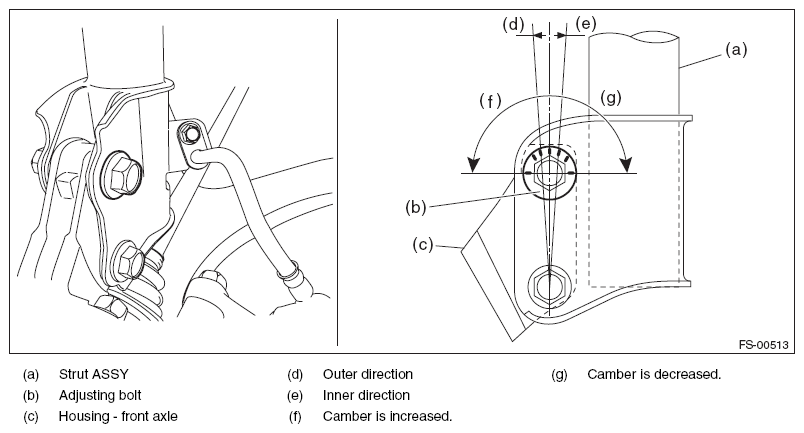

   Fig 1: Moving Adjusting Bolt

   Courtesy of SUBARU OF AMERICA, INC.

   To increase camber.
   Rotate the left side counterclockwise.	Rotate the right side clockwise.

   To decrease camber.
   Rotate the left side clockwise.	Rotate the right side counterclockwise.

4. Tighten two new flange nuts.

Tightening torque:

155 N.m (15.8 kgf-m, 114.3 ft-lb)
