Control Valve Body: Removal

CAUTION:

Directly after the vehicle has been running or the engine has been idling for a long time, the CVTF is hot. Be careful not to burn yourself.
Be careful not to spill CVTF on the exhaust pipe to prevent it from emitting smoke or causing a fire. If the CVTF adheres, wipe it off completely.
Always clean the engine compartment before removal.

NOTE: The control valve body is replaced as an assembly only, because it is a non-disassembly part.

Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Repair Contents.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the clip (A), and loosen the clamps (B) and (C).

Fig 1: Air Intake Duct Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Fig 2: Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.

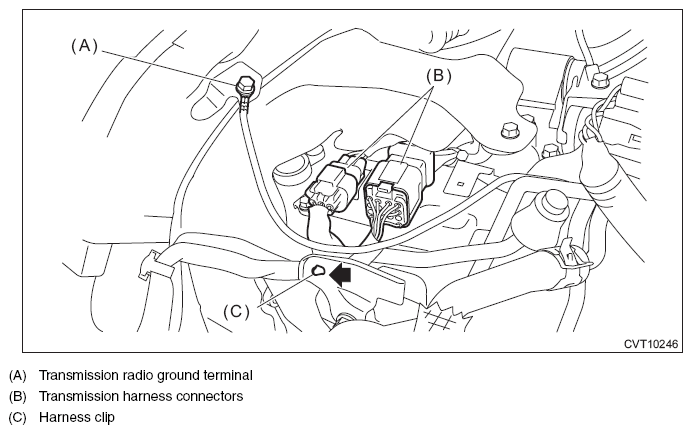

Disconnect the transmission radio ground terminal and transmission harness connector, and remove the harness clip.

Fig 3: Locating Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover.

Fig 4: Locating Transmission Case Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Detach the air breather hose.

Fig 5: Locating Air Breather Hose With Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission hanger and transmission radio ground cord.

Fig 6: Transmission Hanger And Transmission Radio Ground Cord
Courtesy of SUBARU OF AMERICA, INC.
Remove the TCM. <Ref. to REMOVAL , Transmission Control Module (TCM).>
Detach the transmission harness stay and ground terminal, and remove the harness clip.

Fig 7: Locating Transmission Harness Stay And Ground Terminal Harness Clip And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission harness connector from the harness stay.
Remove the TCM. <Ref. to REMOVAL , Transmission Control Module (TCM).>
Remove the throttle body, and move it aside so that it will not interfere with the removal of the control valve. <Ref. to REMOVAL , Throttle Body.>
NOTE: Do not remove the preheater hose.
Clean the transmission exterior.
Fix the ST with tape, and set the ST to the vehicle.
NOTE: When replacing the control valve body, the sheet is included in the control valve body for repairs.

ST 18761AA010 SHEET SPECIAL TOOL

Fig 8: Fixing Sheet Special Tool (18761AA010) With Tape
Courtesy of SUBARU OF AMERICA, INC.
Remove the valve cover and gasket.

Fig 9: Valve Cover With Nuts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector from the control valve body.
Remove the transmission harness.

Fig 10: Locating Control Valve Body Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Fig 11: Locating O-Rings
Courtesy of SUBARU OF AMERICA, INC.
Remove the control valve body.
CAUTION: Be careful not to damage the control valve and air conditioner pipe.

Fig 12: Locating Control Valve Body Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Fig 13: O-Rings
Courtesy of SUBARU OF AMERICA, INC.
