Oil Pump Chain: Installation

Clean the mating surface of oil pump chain cover and converter case.
Using the ST, install the oil seal.
NOTE:
- Use a new oil seal.
- Apply CVTF to the oil seal lip and press-fitting surface.
ST 499755602 PRESS SNAP RING

Fig 1: Installing Oil Seal Using Press Snap Ring (499755602)
Courtesy of SUBARU OF AMERICA, INC.
Install the drive sprocket.

Fig 2: Drive Sprocket
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring so that its cutout portion is securely fitted into the snap ring groove of the oil pump chain cover.

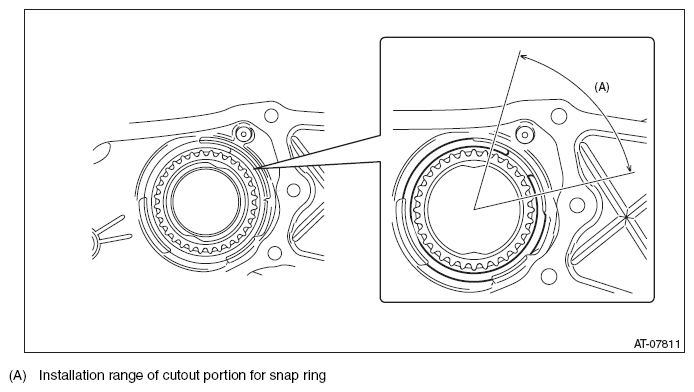

Fig 3: Installation Range Of Cutout Portion For Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump chain on drive sprocket.
Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.

Fig 4: Installing Driven Sprocket To Oil Pump Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the seal rings.
NOTE:
- Use new seal rings.
- Apply CVTF to the seal rings.
- When installing the seal rings, do not expand the seal rings too much.
Fig 5: Locating Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket seamlessly to the mating surface of oil pump chain cover.
CAUTION: Do not apply liquid gasket at the arrowed hole.

Liquid gasket:

THREE BOND 1215B or equivalent

Fig 6: Locating Oil Pump Chain Cover Hole
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pump chain cover.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

Fig 7: Locating Oil Pump Chain Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter assembly. <Ref. to INSTALLATION , Torque Converter Assembly.>
Install the transmission assembly. <Ref. to INSTALLATION , Automatic Transmission Assembly.>
