Turbine Speed Sensor: Inspection

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the clip (A), and loosen the clamps (B) and (C).

Fig 1: Air Intake Duct Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Fig 2: Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the transmission radio ground terminal and transmission harness connector, and remove the harness clip.

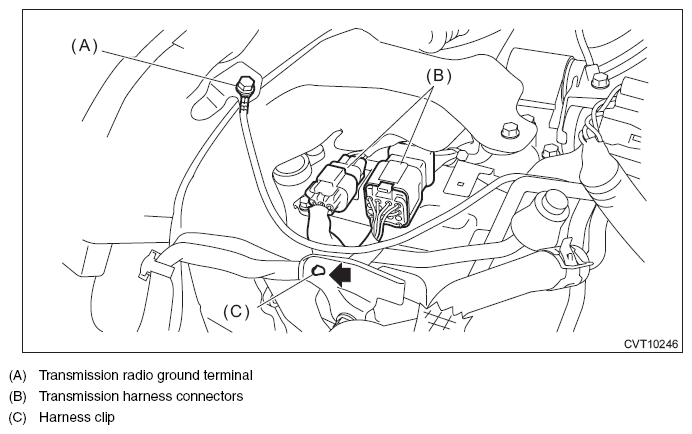

Fig 3: Locating Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover.

Fig 4: Locating Transmission Case Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

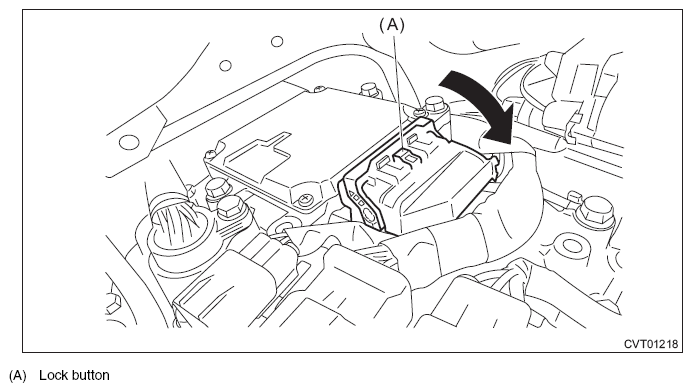

Fig 5: Moving Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Set the ST between TCM and transmission harness. <Ref. to CAUTION , General Description.>
ST 18460AA040 CHECK BOARD
Connect the transmission radio ground terminal and transmission harness connector, and install the harness clip.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)
Install the air intake boot assembly. <Ref. to INSTALLATION , Air Intake Boot.>
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Set the probe of oscilloscope to the check board connector.
Connector & terminal:

(B54) No. 12 (+) - No. 26 (-):

Fig 6: Board Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.
Start and warm up the engine.
Check the waveform and output voltage of the turbine speed sensor with engine idling.

NOTE: The waveform cycle changes as the speed changes.

Fig 7: Waveform Cycle - Turbine Speed Sensor

Courtesy of SUBARU OF AMERICA, INC.
