Exhaust Side

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Lift up the vehicle.
  3. Remove the under cover. <Ref. to REMOVAL , Front Under Cover.>
  4. Disconnect the connector (A) from the exhaust oil flow control solenoid valve, and remove the exhaust oil flow control solenoid valve.
    • RH side

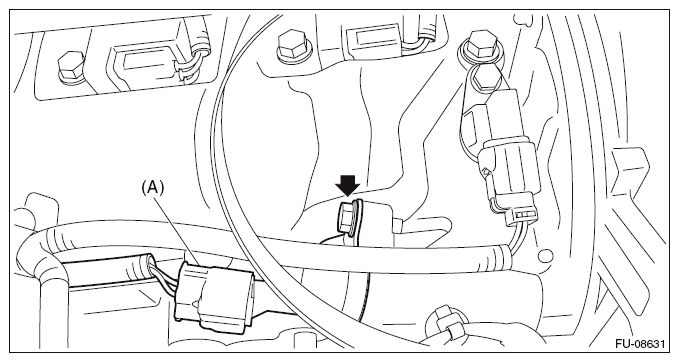

      Fig 1: Locating Exhaust Oil Flow Control Solenoid Valve Bolt With Connector - RH Side
      G10263620Courtesy of SUBARU OF AMERICA, INC.
    • LH side

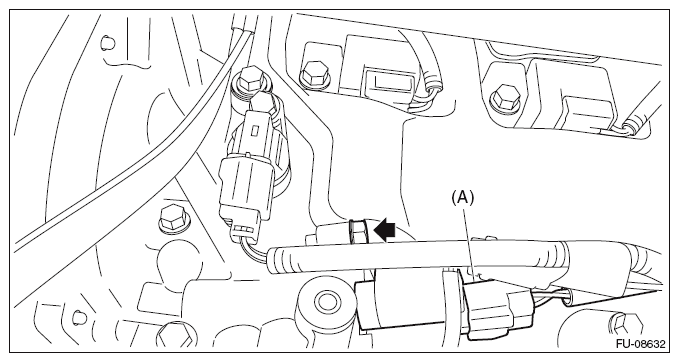

Fig 2: Locating Exhaust Oil Flow Control Solenoid Valve Bolt With Connector - LH Side
G10263621Courtesy of SUBARU OF AMERICA, INC.
