Waveform 11

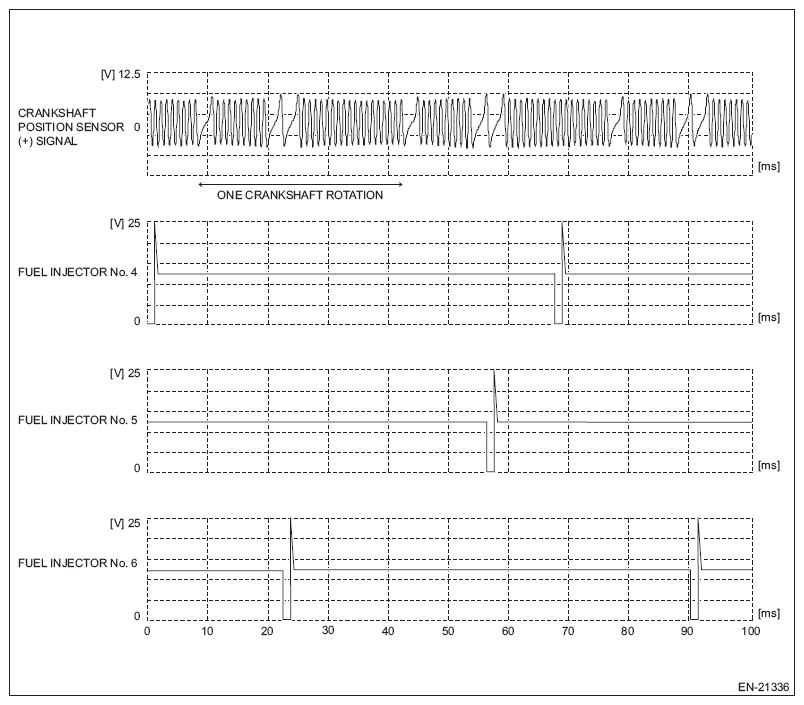

Fig 1: Waveform 11

Courtesy of SUBARU OF AMERICA, INC.

Measured terminal	Crankshaft position sensor (+) signal (E158) No. 40 (+) - Engine ground 3 (E158) No. 63:
	Fuel injector #4 (E158) No. 22 (+) - Engine ground 3 (E158) No. 63:
	Fuel injector #5 (E158) No. 52 (+) - Engine ground 3 (E158) No. 63:
	Fuel injector #6 (E158) No. 13 (+) - Engine ground 3 (E158) No. 63:
Measuring condition	While engine idling
