Waveform 12

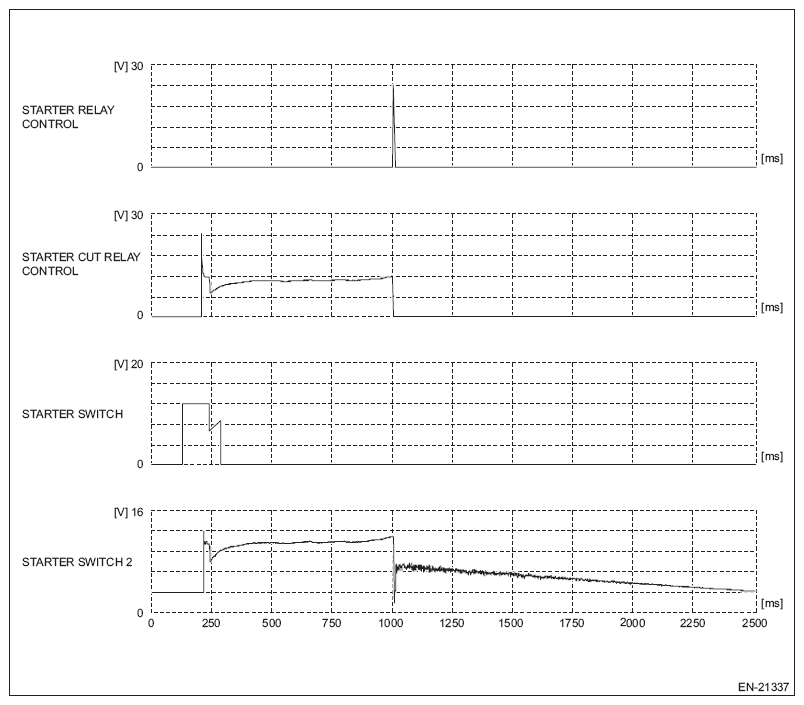

Fig 1: Waveform 12

Courtesy of SUBARU OF AMERICA, INC.

Measured terminal	Starter relay control (B134) No. 62 (+) - Engine ground 3 (E158) No. 63:
	Starter cut relay control (B134) No. 49 (+) - Engine ground 3 (E158) No. 63:
	Starter switch (B134) No. 46 (+) - Engine ground 3 (E158) No. 63:
	Starter switch 2 (B134) No. 58 (+) - Engine ground 3 (E158) No. 63:
Measuring condition	Engine starting status
