Waveform 13

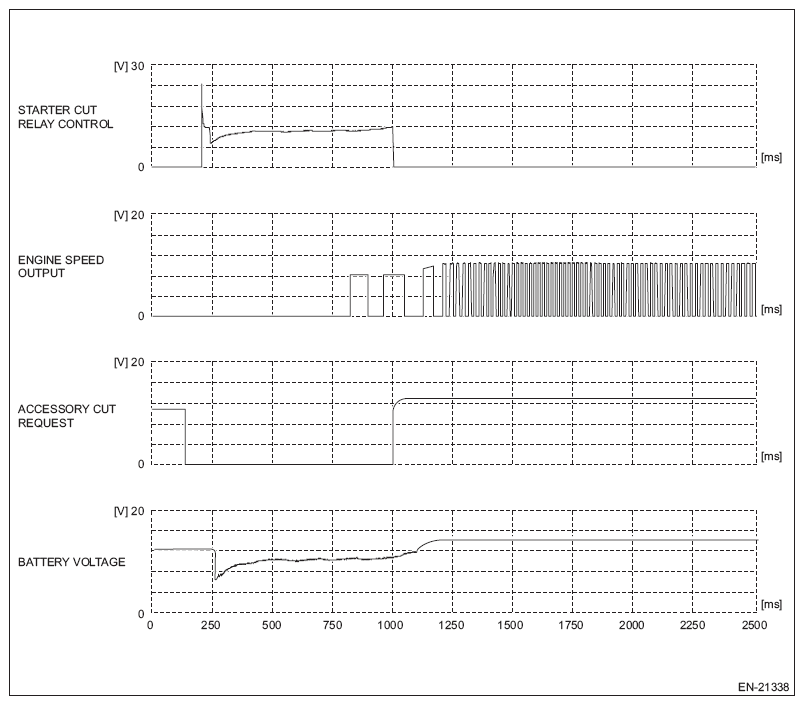

Fig 1: Waveform 13

Courtesy of SUBARU OF AMERICA, INC.

Measured terminal	Starter cut relay control (B134) No. 49 (+) - Engine ground 3 (E158) No. 63:
	Engine speed output (B134) No. 10 (+) - Engine ground 3 (E158) No. 63:
	Accessory cut request (B134) No. 64 (+) - Engine ground 3 (E158) No. 63:
	Battery voltage (battery terminal) (+) - Engine ground 3 (E158) No. 63:
Measuring condition	Engine starting status
