Transmission Control Device: Installation

Install the detent spring.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 1: Identifying Detent Spring Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the manual plate, parking rod, range select lever and bolt.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

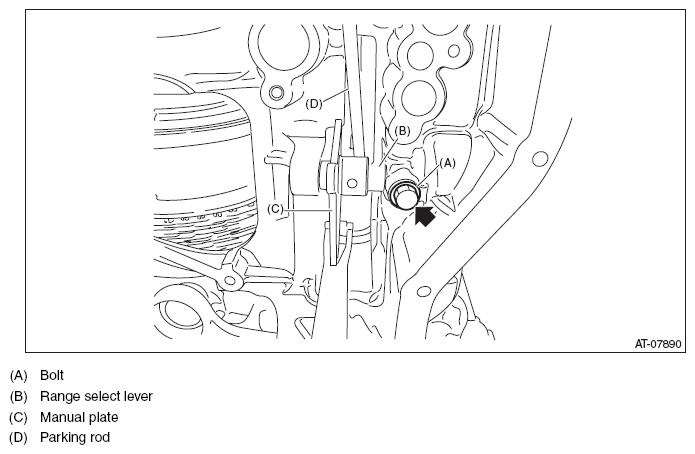

Fig 2: Identifying Manual Plate, Parking Rod And Range Select Lever Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the spring pin.
NOTE: Use new spring pin.

Fig 3: Identifying Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor switch. Ref. to INHIBITOR SWITCH
Adjust the inhibitor switch. Ref. to INHIBITOR SWITCH
Install the control valve body and oil pan. Ref. to INSTALLATION , Control Valve Body.
Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
