Transmission Control Module (TCM): Removal

1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
   NOTE: Repair Contents.
2. Remove the air cleaner case. Ref. to REMOVAL , Air Cleaner Case.
3. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

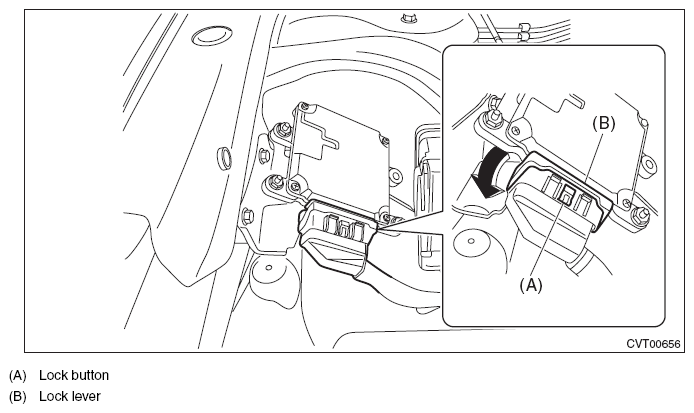

   Fig 1: Moving Connector Lock Lever

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the TCM.

Fig 2: Identifying TCM

Courtesy of SUBARU OF AMERICA, INC.
