Starting System & Charging System (H6DO): Generator: Disassembly

Remove four bolts.

Fig 1: Locating Generator Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Use a drier to heat the rear cover (A) portion to 50 - 60°C (122 - 140°F).

Fig 2: Heating Rear Cover
Courtesy of SUBARU OF AMERICA, INC.

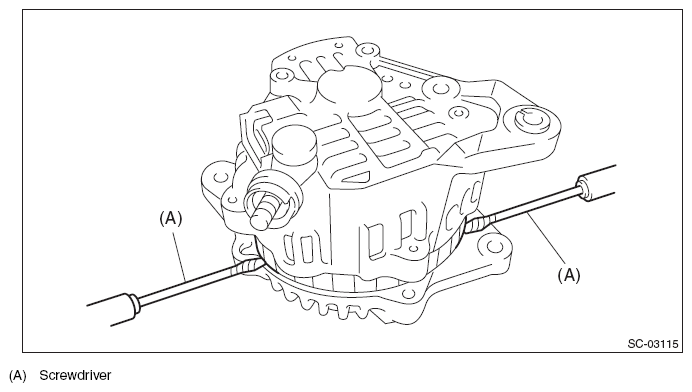

Insert the end of a flat tip screwdriver into the gap between stator core and front cover. Pry them apart to disassemble.

Fig 3: Inserting Flat Tip Screwdriver Into Gap
Courtesy of SUBARU OF AMERICA, INC.
Using a vise, support the rotor and remove the pulley nut, then remove the rotor from the front cover.
CAUTION: When holding the rotor with a vise, place aluminum plates or wooden pieces on the vise jaws to prevent rotor from damage.

Fig 4: Removing Pulley Nut
Courtesy of SUBARU OF AMERICA, INC.

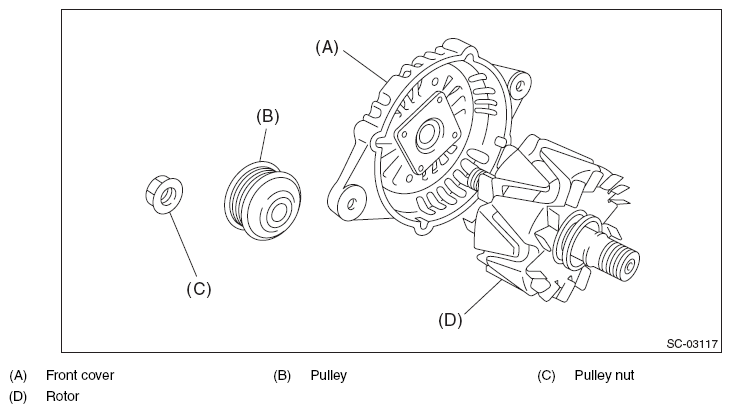

Fig 5: Identifying Front Cover, Rotor, Pulley And Pulley Nut
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the ball bearings.
1. Remove the bolt, and then detach the bearing retainer.

  Fig 6: Locating Ball Bearing Retainer Bolts
  Courtesy of SUBARU OF AMERICA, INC.
2. Set an appropriate tool (such as a socket wrench of proper size) properly to the bearing inner race.

  Fig 7: Setting Socket To Bearing Inner Race
  Courtesy of SUBARU OF AMERICA, INC.
3. Use the press to push the ball bearings out from the front cover.
Using the bearing puller, remove the bearings from the rotor.

Fig 8: Removing Bearings From Rotor
Courtesy of SUBARU OF AMERICA, INC.
Remove six bolts between the rectifier and stator coil, then remove the stator coil.

Fig 9: Locating Stator Coil Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove four screws which secure the IC regulator to the rear cover, then remove the IC regulator.

Fig 10: Locating IC Regulator Screws
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the brush.

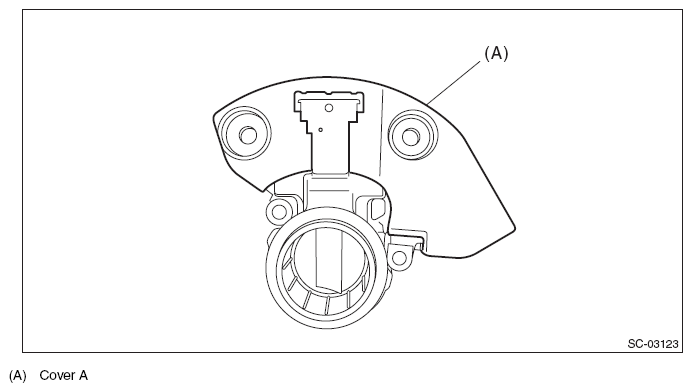

1. Remove the cover A.

  Fig 11: Identifying Cover A
  Courtesy of SUBARU OF AMERICA, INC.

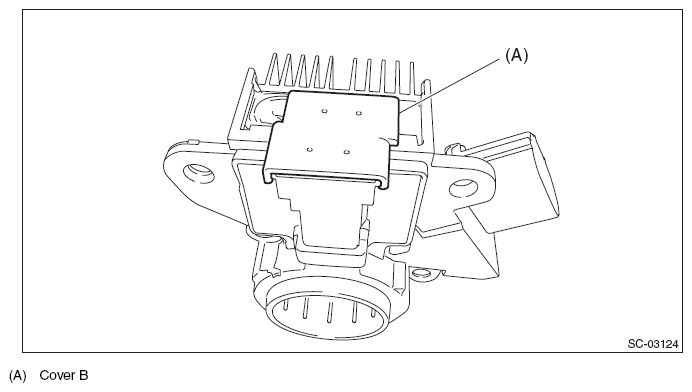

2. Remove the cover B.

  Fig 12: Identifying Cover B
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the connection and remove the brush.
Fig 13: Disconnecting Brush
Courtesy of SUBARU OF AMERICA, INC.
Remove the rectifier as follows.
1. Remove the cover on terminal B.

  Fig 14: Locating Terminal B Cover
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the nut on terminal B.

  Fig 15: Locating Terminal B Nut
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolts which secure the rectifier, and remove the rectifier.
Fig 16: Locating Rectifier Bolts
Courtesy of SUBARU OF AMERICA, INC.
