Communication For Initializing Impossible

When communication with DCM is impossible

DETECTING CONDITION:

TROUBLE SYMPTOM:

Communication is impossible between DCM and Subaru Select Monitor.

CAUTION: CommCheck is required after replacing the DCM. <Ref. to REGISTRATION (COMM CHECK) , OPERATION, TELEMATICS SYSTEM.>

WIRING DIAGRAM:

Telematics <Ref. to WIRING DIAGRAM , Telematics System.>

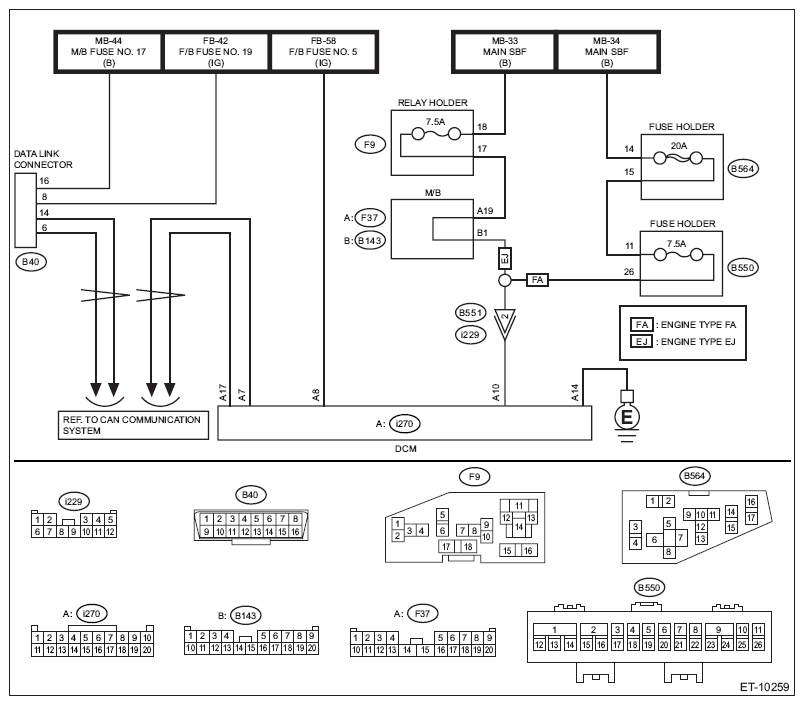

Fig 1: Relay Holder Wiring Diagram
G11581788Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK FUSE.
  1. Turn the ignition switch to OFF.
  2. Check the fuse of the DCM.
 Is the check result OK? Go to step 2  . Replace the fuse. If the replaced fuse blows out easily, repair the ground short circuit in harness between the fuse - DCM connector.
2 CHECK HARNESS (OPEN CIRCUIT).
  1. Disconnect the DCM connector.
  2. Turn the ignition switch to ON.
  3. Using a tester, measure the voltage between DCM connector (harness side) and the chassis ground.

    Connector & terminal

    (i270) No. 8 (+) - Chassis ground (-):

    (i270) No. 10 (+) - Chassis ground (-):

 Is the voltage 10 V or more? Go to step 3  . Repair the open circuit in the wiring harness between fuse and DCM connector.
3 CHECK HARNESS (OPEN CIRCUIT).
  1. Turn the ignition switch to OFF.
  2. Using a tester, measure the resistance between DCM connector (harness side) and the chassis ground.

    Connector & terminal

    (i270) No. 14 - Chassis ground:

 Is the resistance 1 Ω or less? Go to step 4  . Repair the open circuit in the wiring harness between fuse and DCM connector.
4 CHECK LAN SYSTEM.
Inspect LAN system. <Ref. to Basic Diagnostic Procedure .>		 Is the check result OK? Go to step 5  . Perform the inspection according to the diagnosis for LAN system.
5 CHECK TELEMATICS.
Using the Subaru Select Monitor, communicate with the telematics system.		 Is communication possible? The circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.
In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.		 Replace the DCM. <Ref. to DATA COMMUNICATION MODULE .>
